Mini Support With Magnetic Base
Mini Support With Magnetic Base
SKU: Article number: B01639010
Couldn't load pickup availability
| Material | Metallic |
| Dimension | Base: Ø1.2"*1" Stem: 6mm |
| Surface tretment | Blackening & Painting |
| Dimension of clamping device | Ø6 , Ø8 mounting hole & dovetail groove |
| Weight | 0.2 Kg |
| Max Pull | Minimum 140N |
| Country of Origin | China |

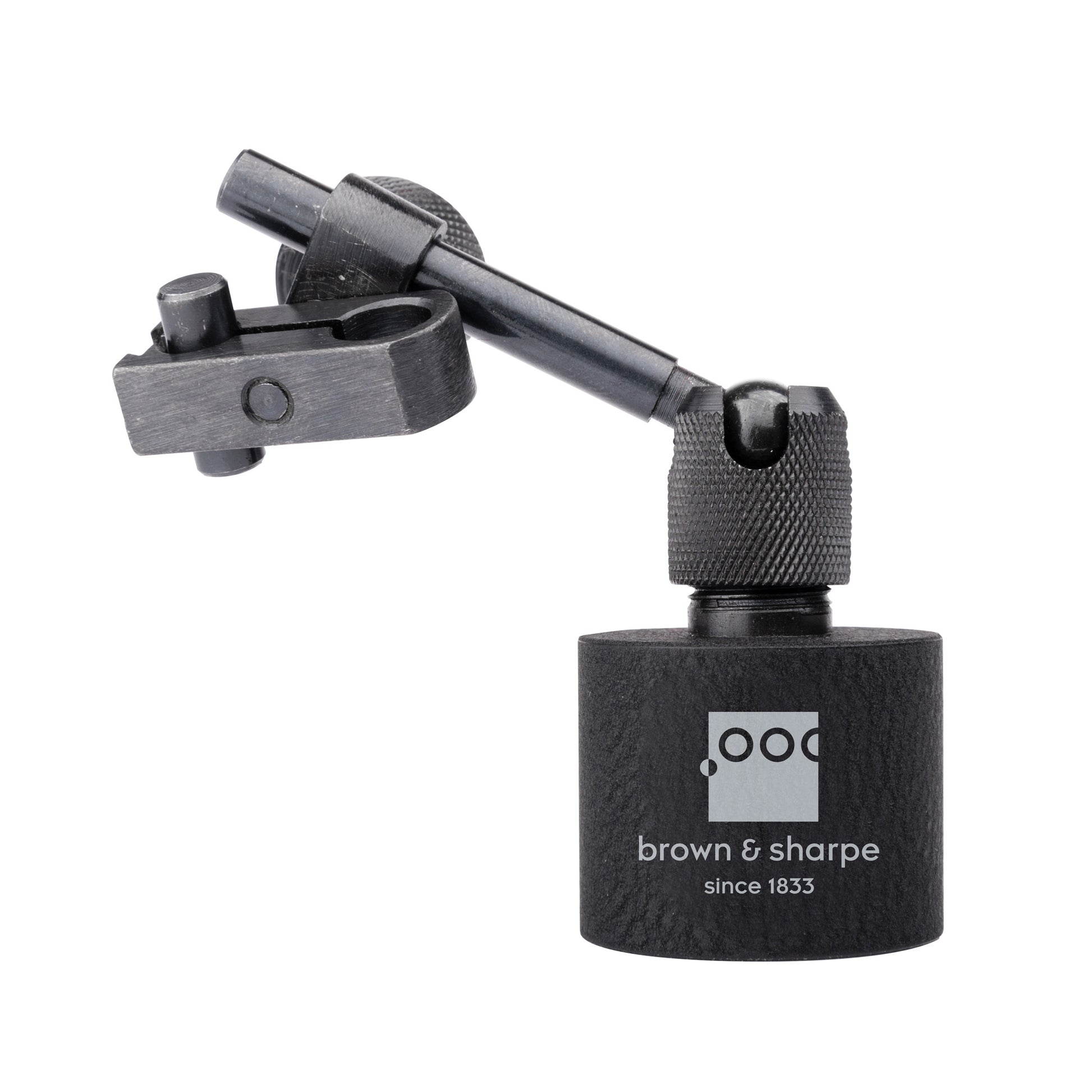

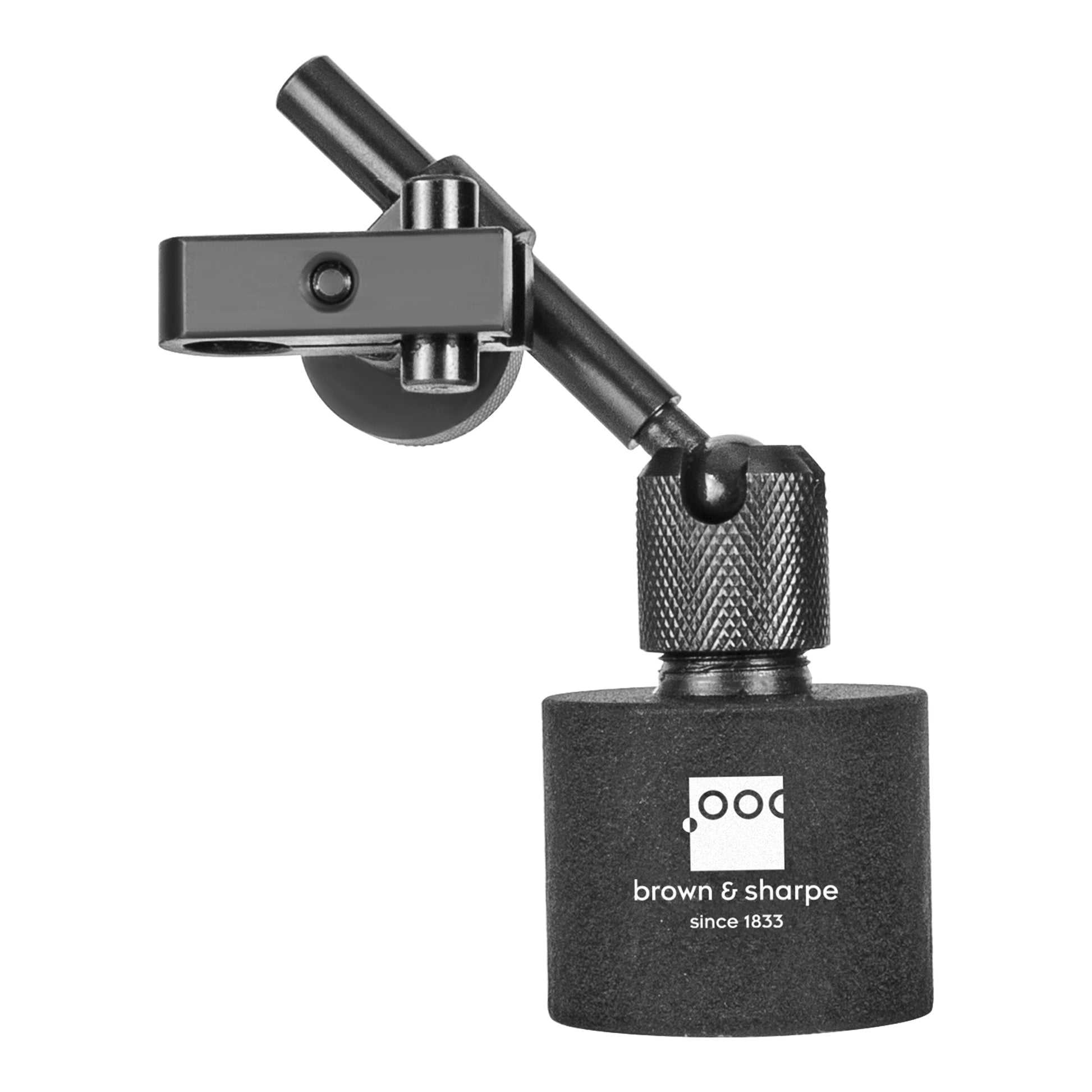

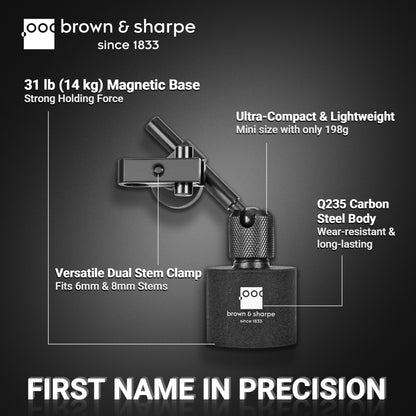

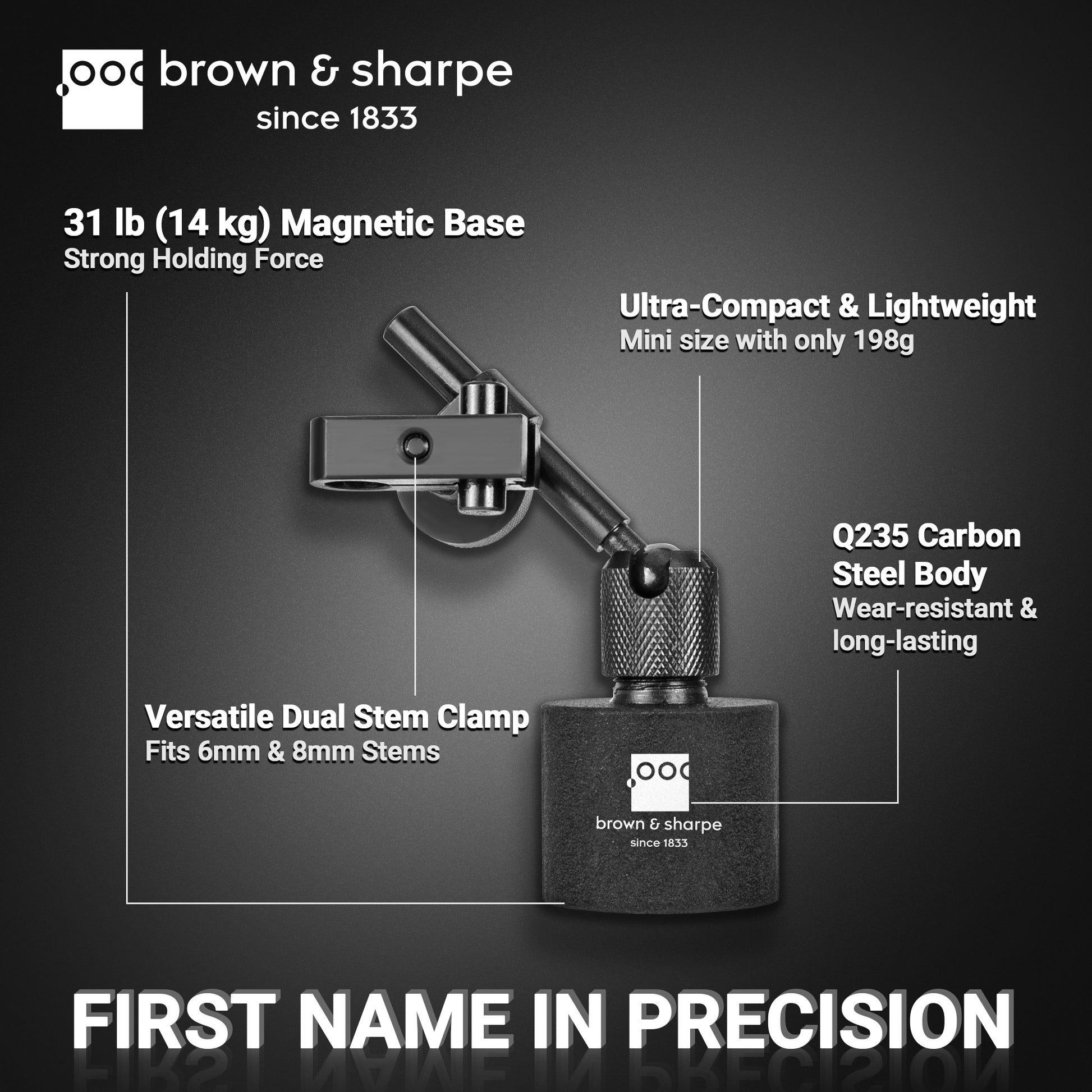

Built to classic Brown & Sharpe precision specification, this mini magnetic base support firmly holds dial indicators and dial test indicators to deliver accurate, repeatable measuring results.
● Compact all-metal structure weighs only 0.2Kg for convenient handheld and bench mounting.
● Equipped with dual Ø6mm & Ø8mm clamping holes alongside integrated dovetail groove to accommodate various indicator stems flexibly.
● Magnetic base provides minimum 140N pull force for stable attachment on all ferrous metal surfaces.
● Body finished with blackening and painting treatment for superior rust resistance and extended service life.
● Perfect for small-space QC inspection, precision machining and workshop dimensional checking.
