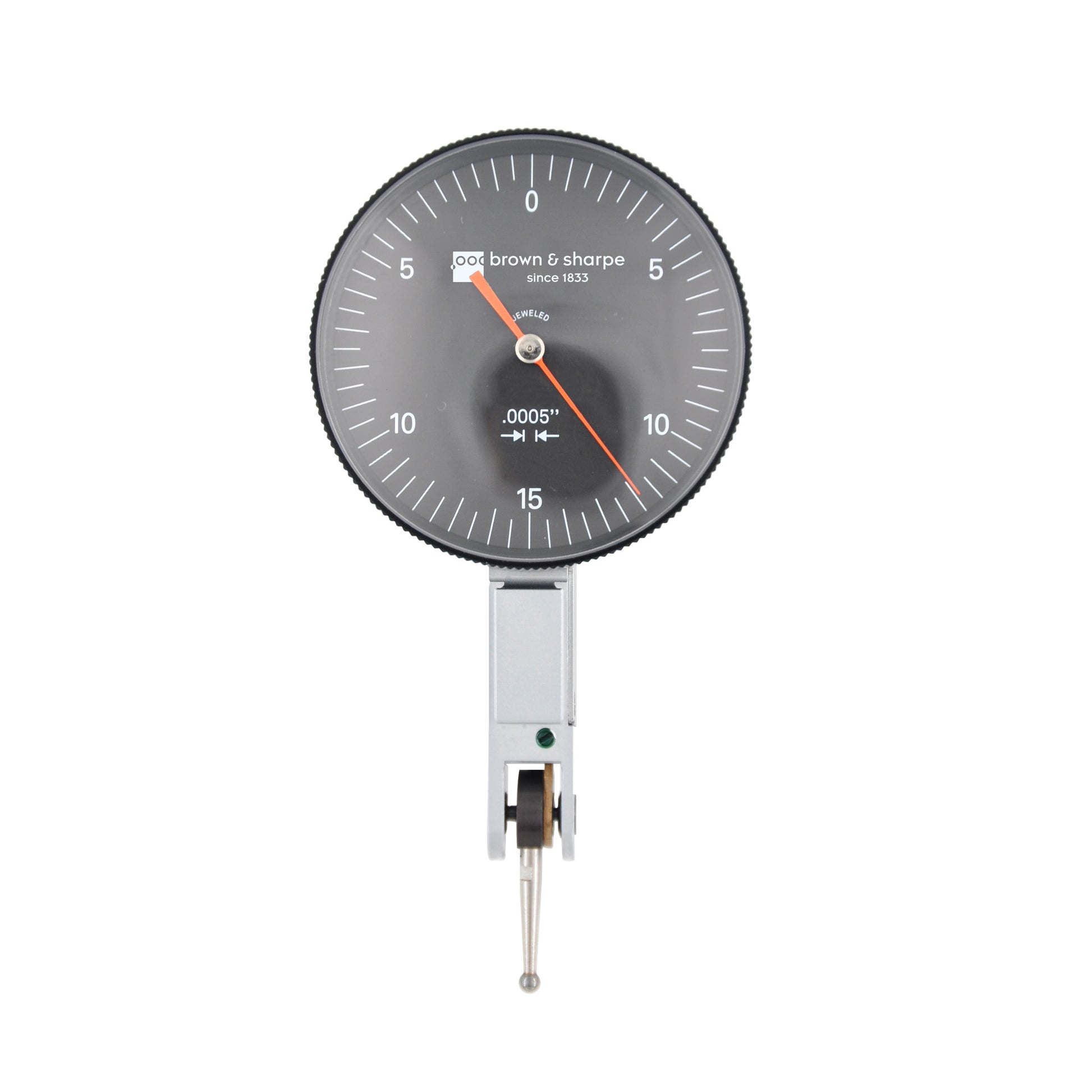

Ruby Bearings Horizontal Dial Lever Indicator 0.03"Range 0-15-0 Dial 0.0005"Graduation
Ruby Bearings Horizontal Dial Lever Indicator 0.03"Range 0-15-0 Dial 0.0005"Graduation
Regular price
$319.00 USD
Regular price
Sale price
$319.00 USD
Unit price
/
per
Couldn't load pickup availability
• INSTRUMENT
-Bidirectional measuring with automatic reversal inside the movement.
-Continuous clockwise pointer rotation providing error-free reading.
-Insensitive to magnetic fields.
-Jewelled movement with 6 rubies.
-Ball-bearing lever system with measuring insert swivelling through to 240°.
-Very low measuring force.
-Full-metal construction giving exceptional robustness.
-Monobloc housing with 3 countersunk dovetail attachments.
• MEASUREMENT

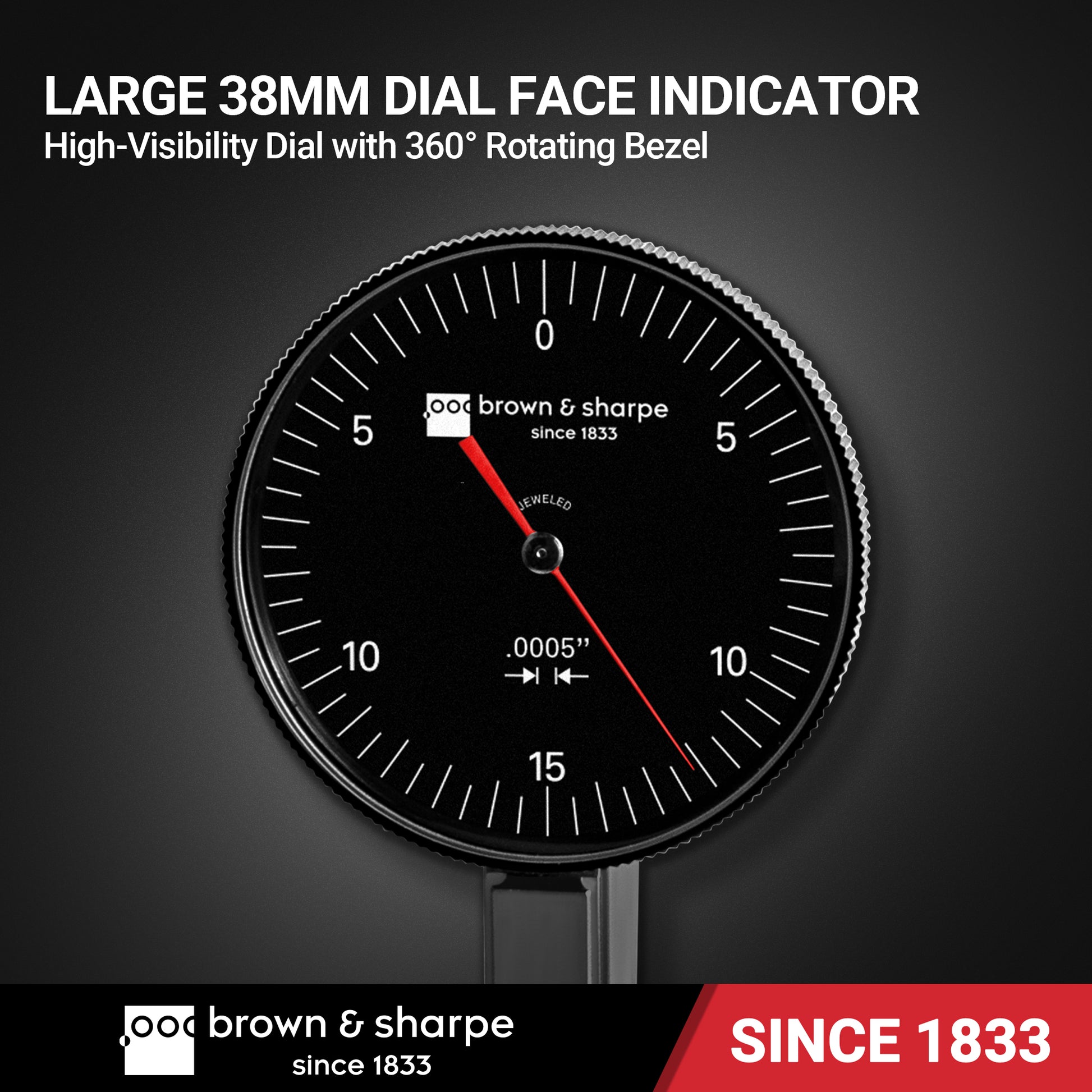

- Good reading with big high-contrast dial

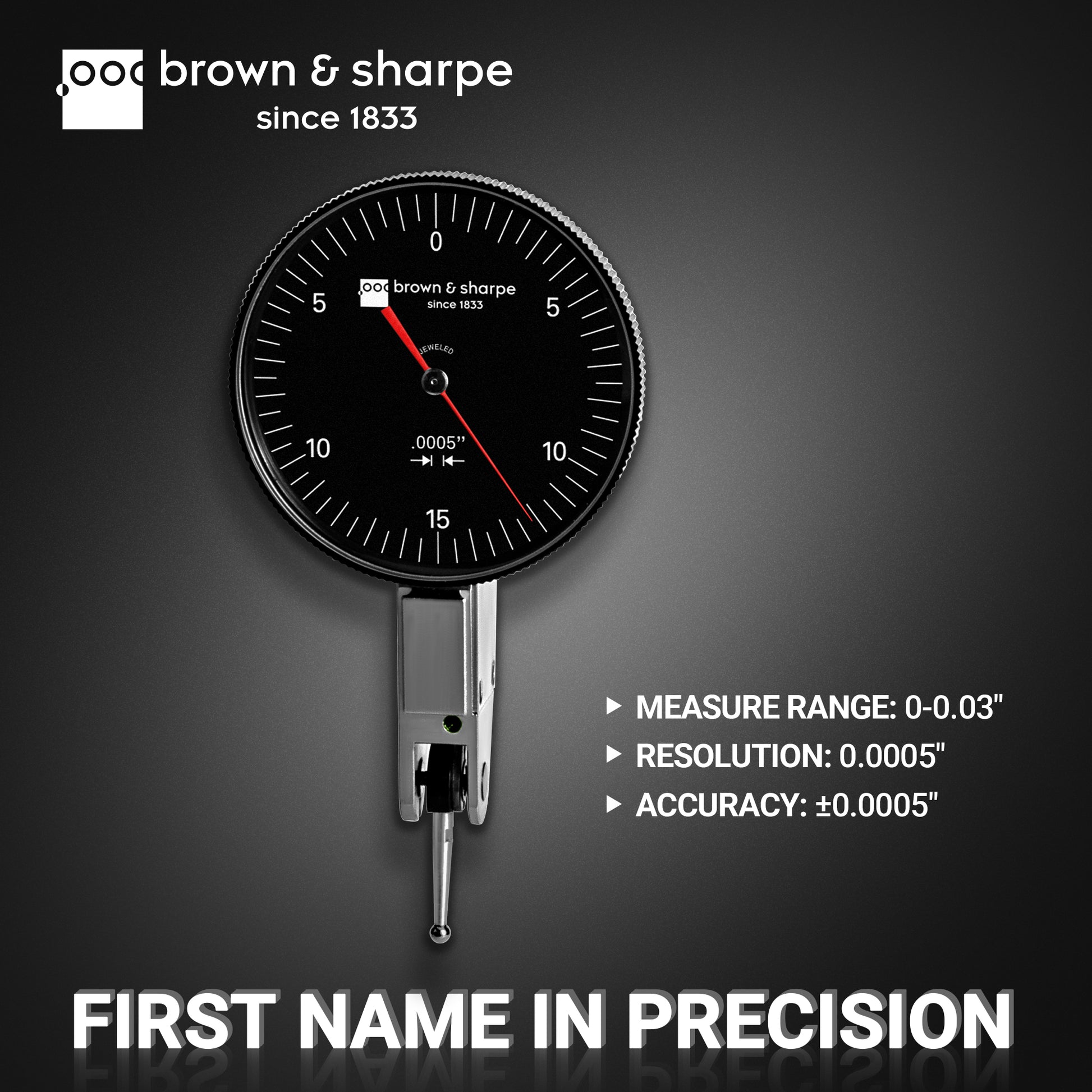

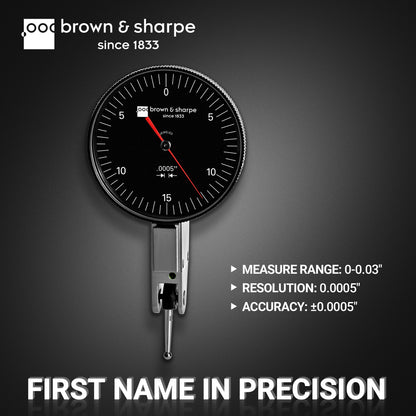

| Specifications | |
| Measuring range | 0.03" |
| Resolution | 0.0005" |
| Travel / revolution | 0.015" |
| Measuring force | Low measuring force |
| Material | Housing：Metallic Ball inserts：Tungsten carbide |
| Measuring probe | Thread M1.4 Ball insert Ø 2 mm |
| Units | in |
| Standard | Dimensions :ISO 9493 Performances :DIN2270 |
| Max. perm. Errors | MPEE 10μm/500μin MPEH 3μm/150μin MPER 3μm/150μin |
| Dial | Ø 1.5 in Rotary |
| Remark | If the position of the insert is parallel to the surface of the workpiece(figure A), the 1:1 ratio is accurate. Therefore,the reading does not require any correction. In the opposite case (figure B),the effective length of the lever changes. The readings must then be corected. In this regard, please refer to the user manual. |

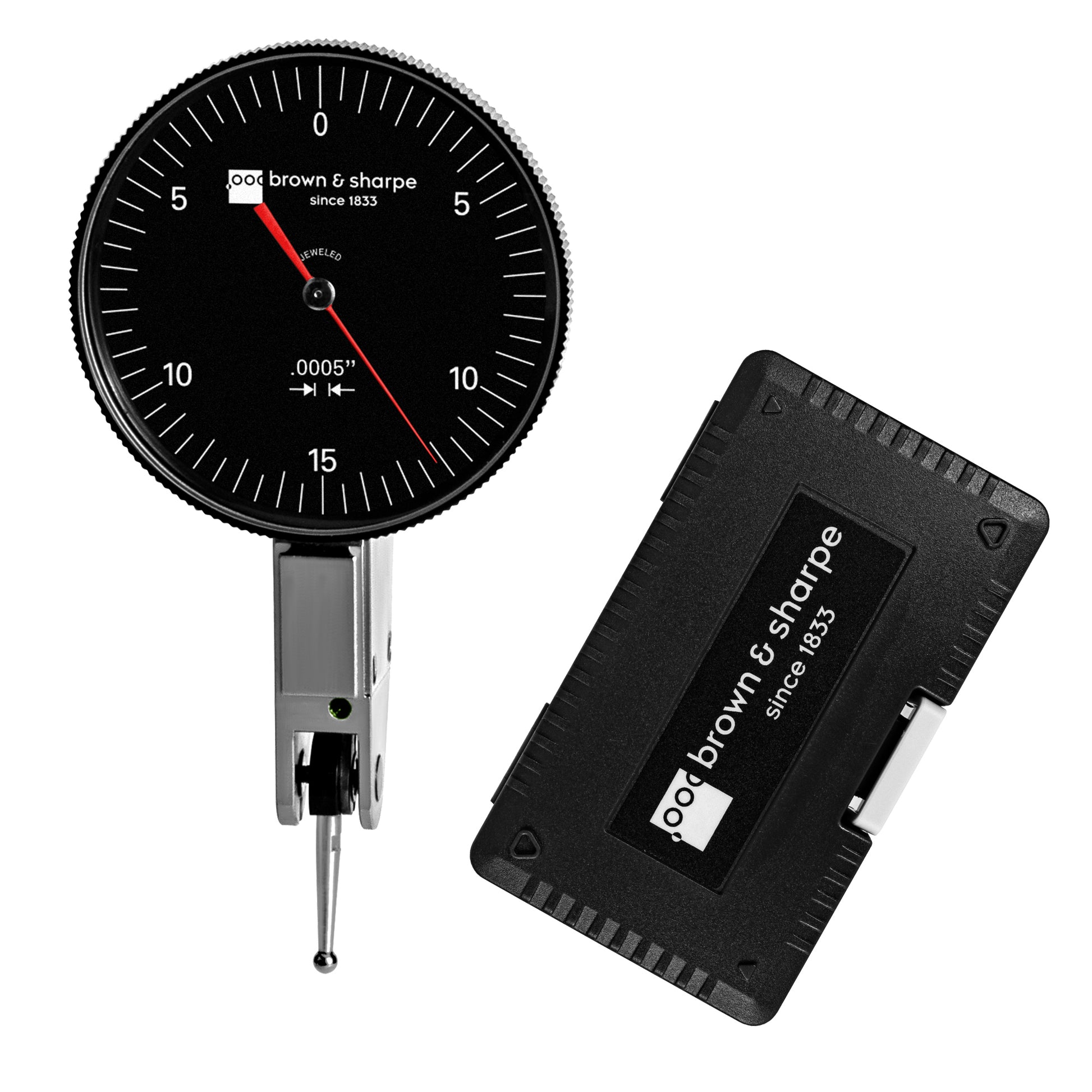

| Included in delivery | Lever-type dial test indicator with mounted ball insert Ø 2 mm. Wrench for insert mounting. Rigid stem Ø 8 mm. User manual. Declaration of conformity. |
