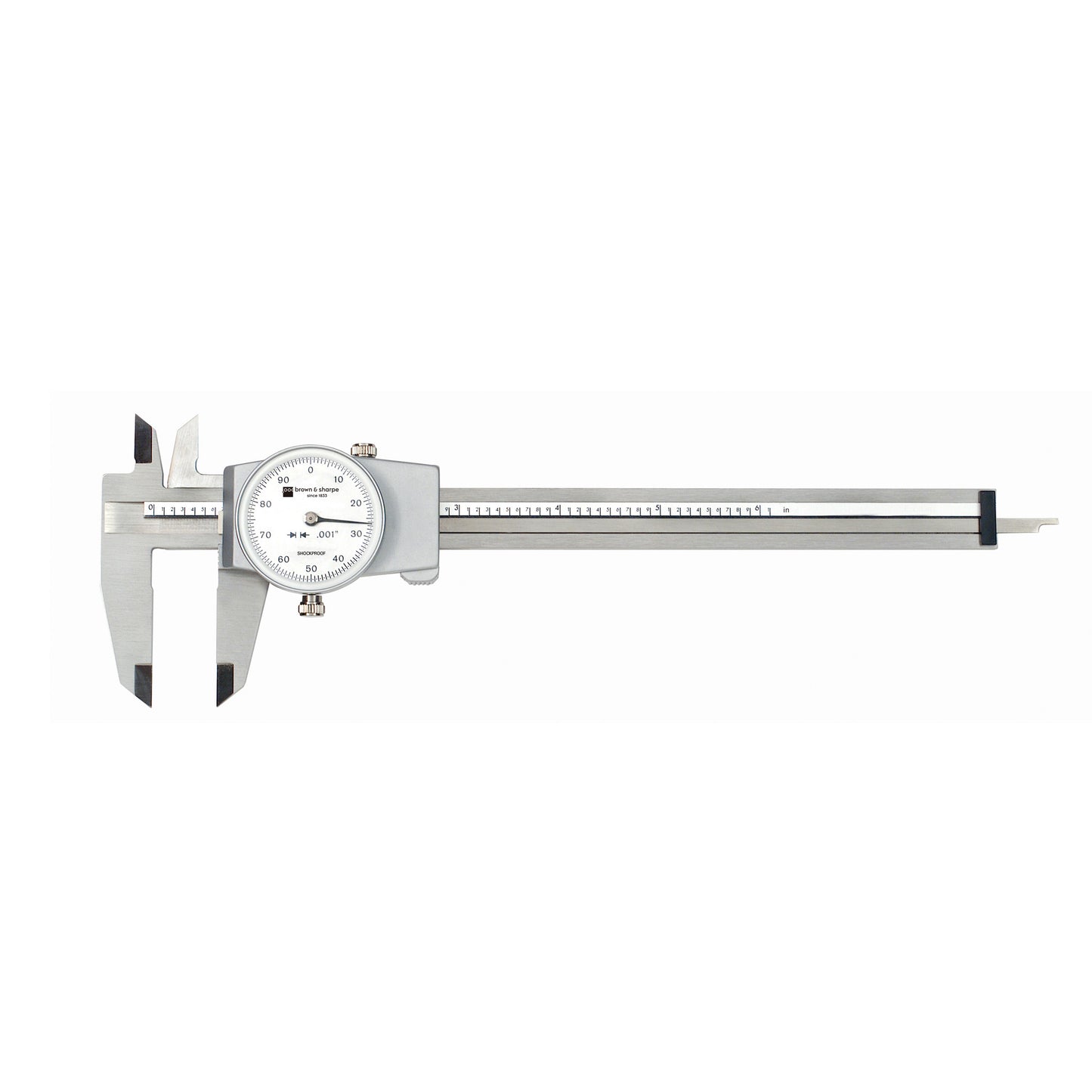

• 6in./8in./12in. Range Dial Caliper Swiss Core™ Movement on white background #B00580021
  • Brown & Sharpe dial caliper feature diagram with Swiss‑made shockproof movement, hardened stainless measuring jaws and smooth thumb‑slide

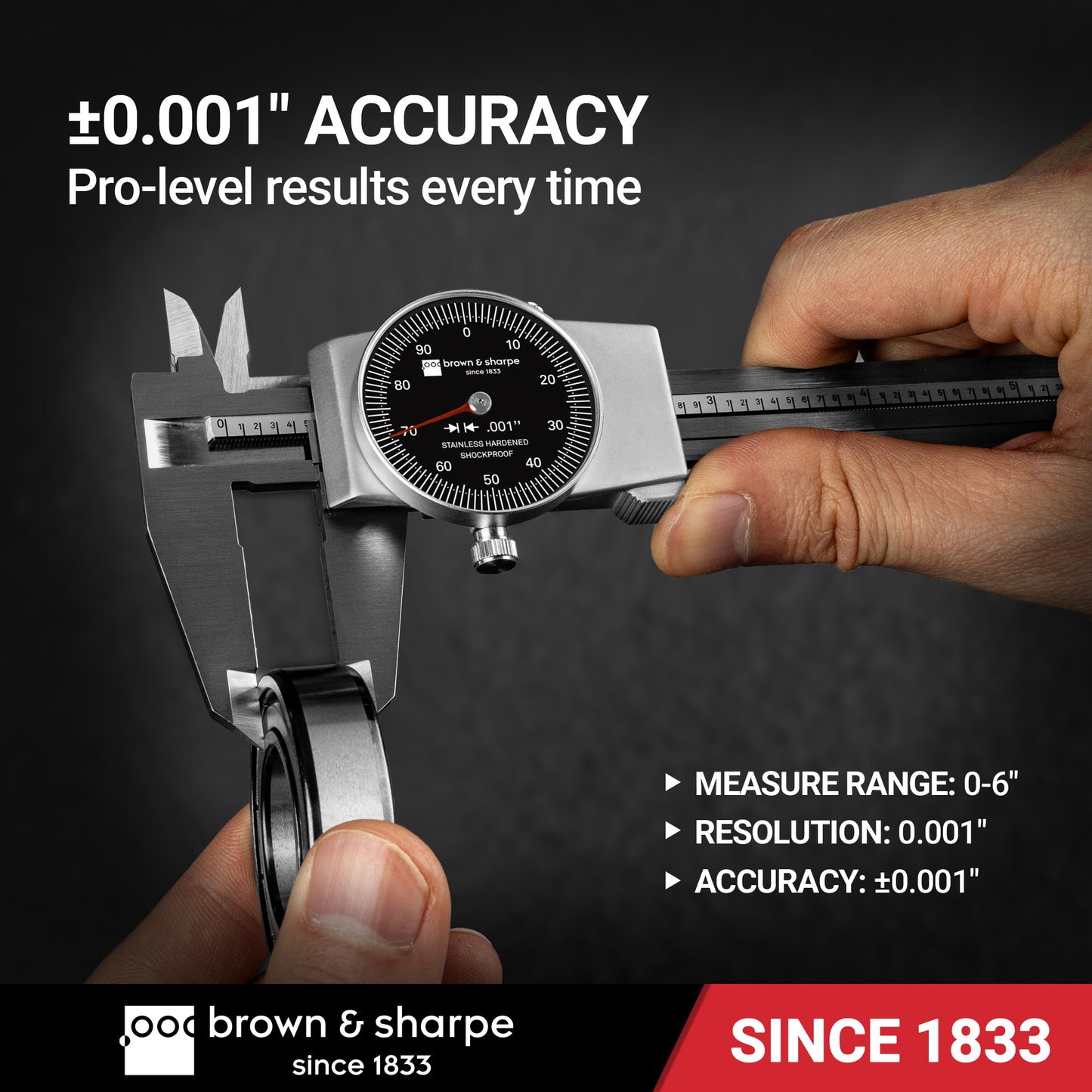

  • Hands‑on usage photo of Brown & Sharpe 0‑6‑inch dial caliper for bearing measurement, 0.001‑inch resolution and ±0.001‑inch precision
  • SWISS MADE SHOCKPROOF MOVEMENT Multi-gear system for lasting accuracy

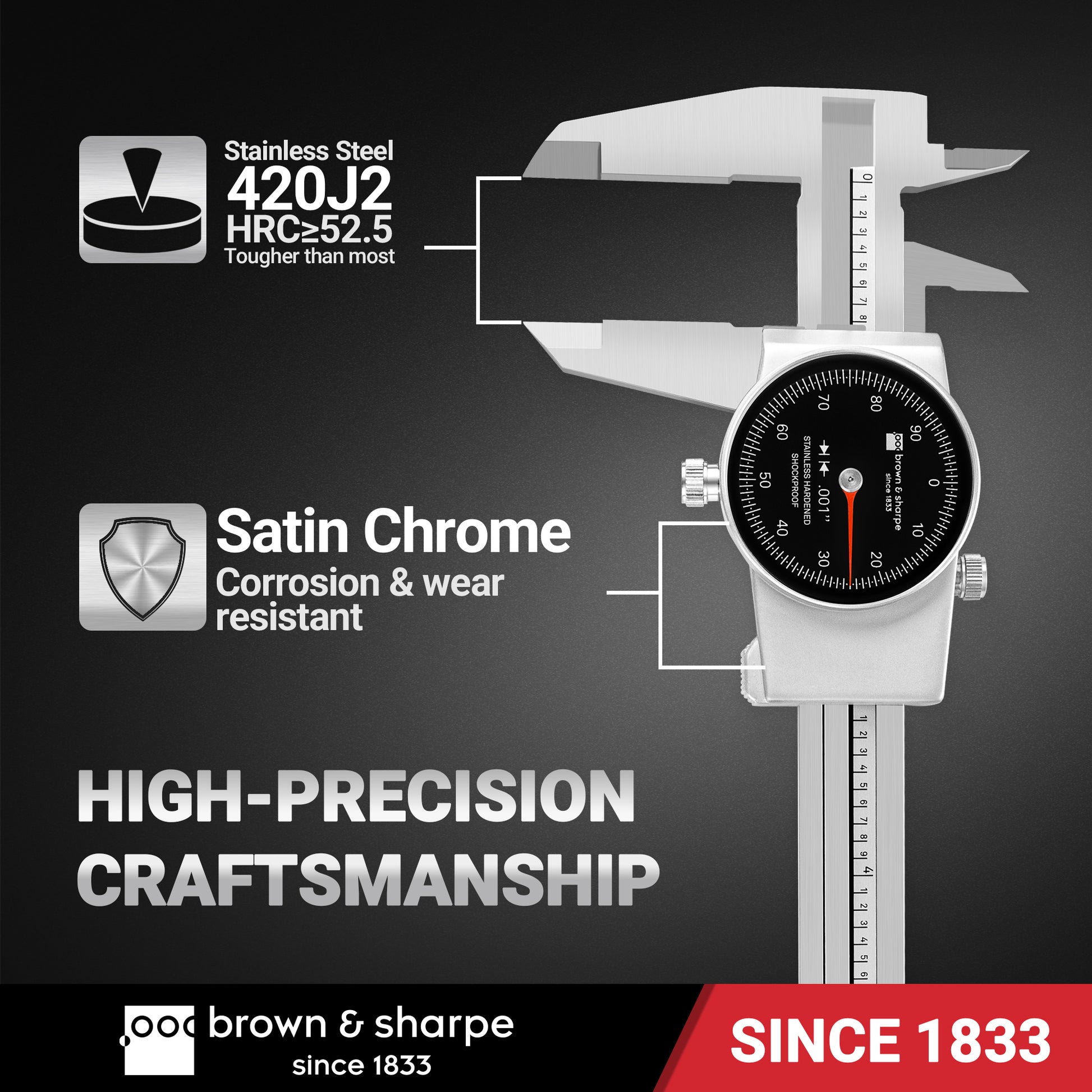

  • Brown & Sharpe dial caliper material feature illustration, 420J2 stainless‑steel jaws HRC≥52.5, satin‑chrome anti‑corrosion finish
  • SILKY-SMOOTH THUMB SLIDE No stutter movement

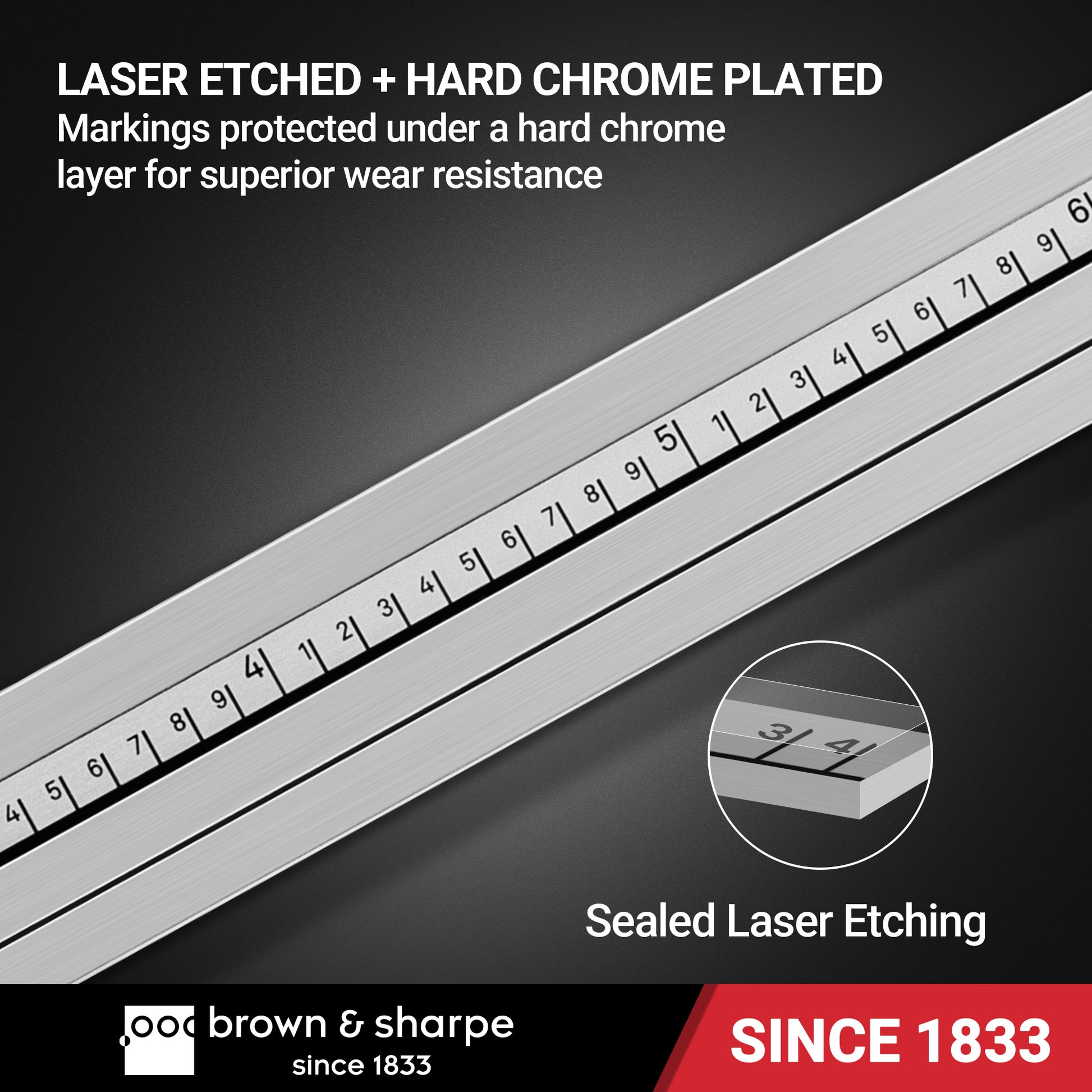

  • Close‑‑up photo of caliper scale with sealed laser‑etched markings and hard‑chrome‑plated wear‑resistant surface

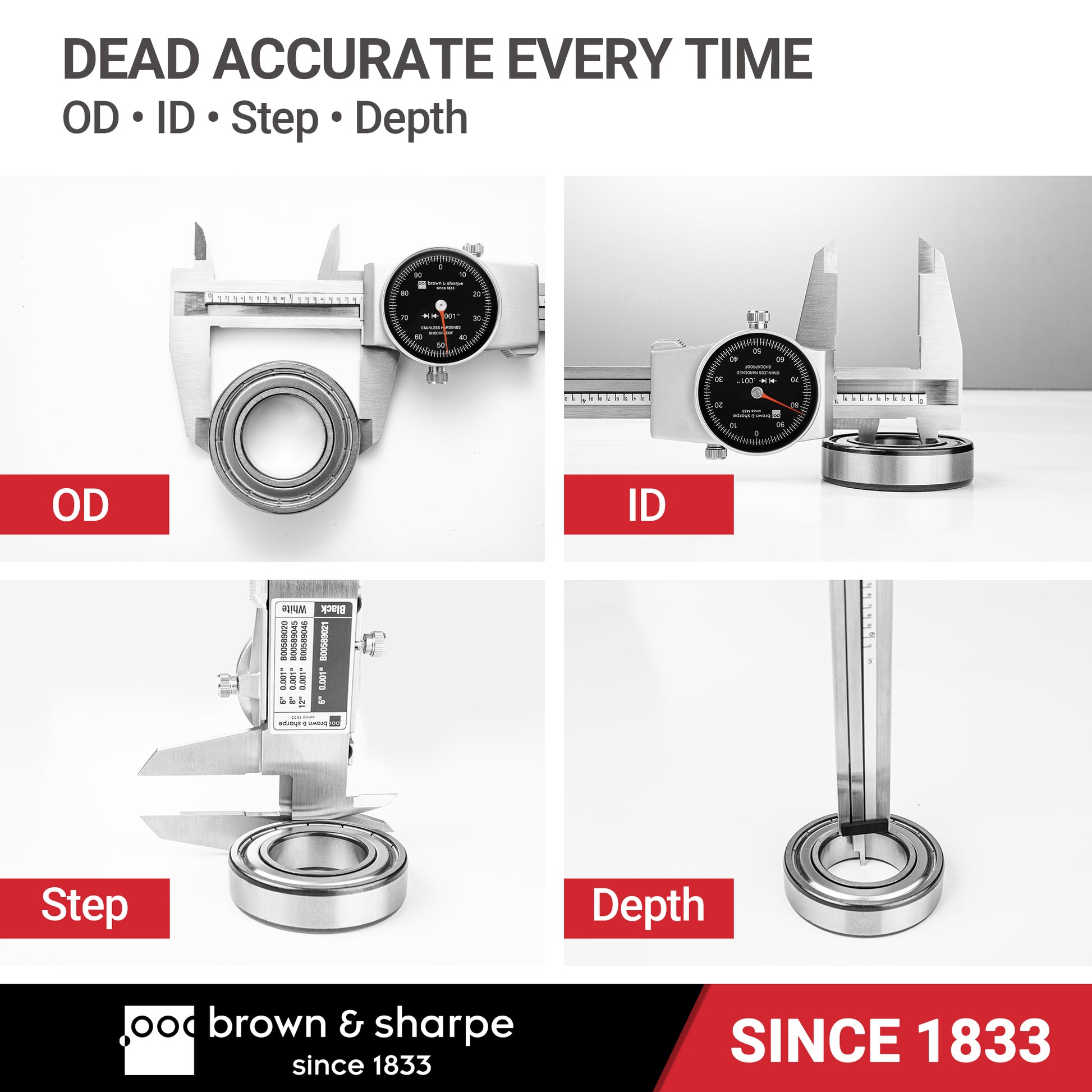

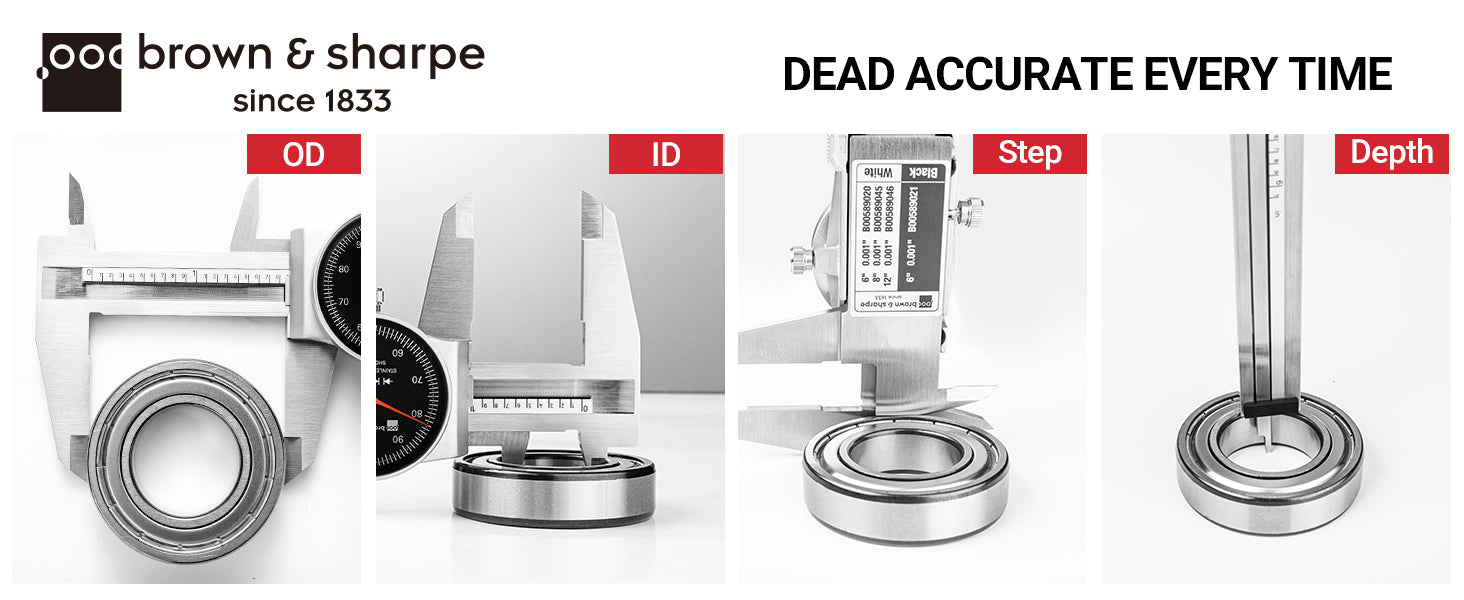

  • Four‑in‑one usage diagram of dial caliper for outer‑diameter, inner‑diameter, step and depth measurement on bearing

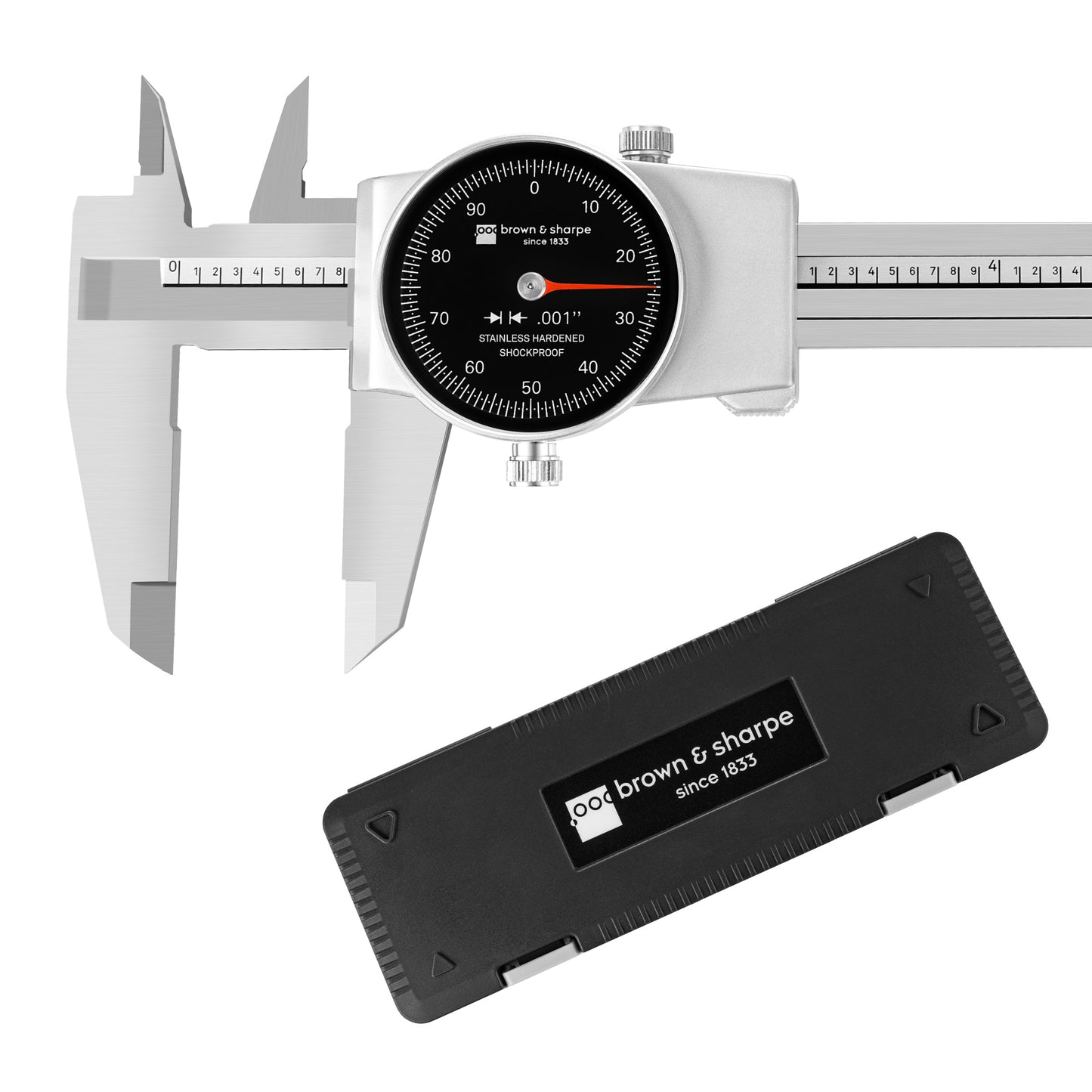

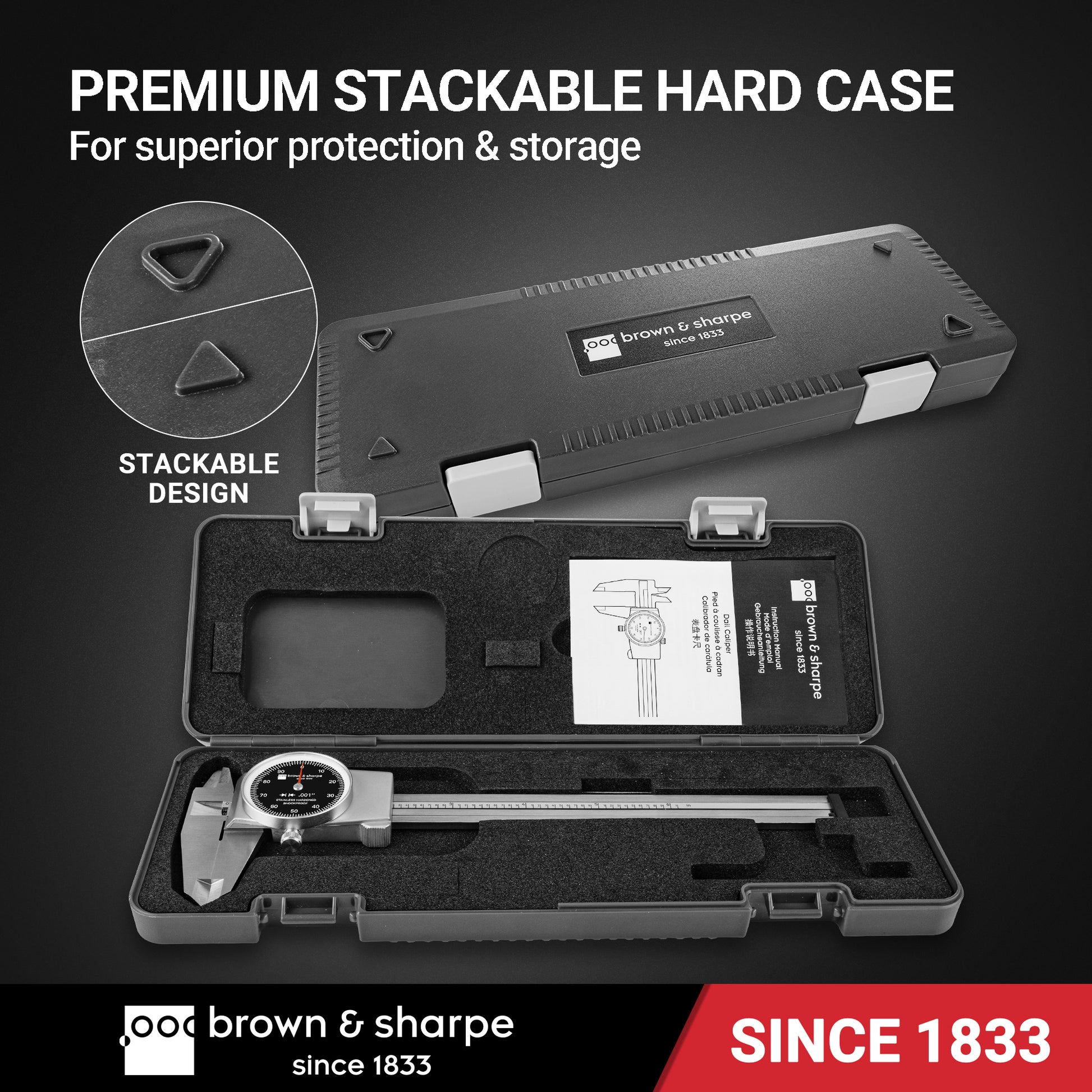

  • PREMIUM STACKABLE HARD CASE For superior protection & storage
1 9

6in./8in./12in. Range Dial Caliper Swiss Core™ Movement

6in./8in./12in. Range Dial Caliper Swiss Core™ Movement

SKU: B00580021

$229.99
$229.99
Sale Sold out
Dial Face Color
Measuring range

Specifications ▼
Measuring range 0–6"
0–8"
0–12"
Resolution 0.001 in
Travel / revolution .1 in/r
Thumb roller 0-6" without thumb roller
0-8", 0-12" with thumb roller
Housing Material Zinc-aluminum alloy
Units in
Standard ISO 13385-1:2019
Max. perm. Errors L = length in inches
0 < L ≤ 4: ± 20 µm
4 < L: ± 30 µm
Material Hardened stainless steel
Gear mechanism made of hardened, ground steel
Dial Ø 1.2 in

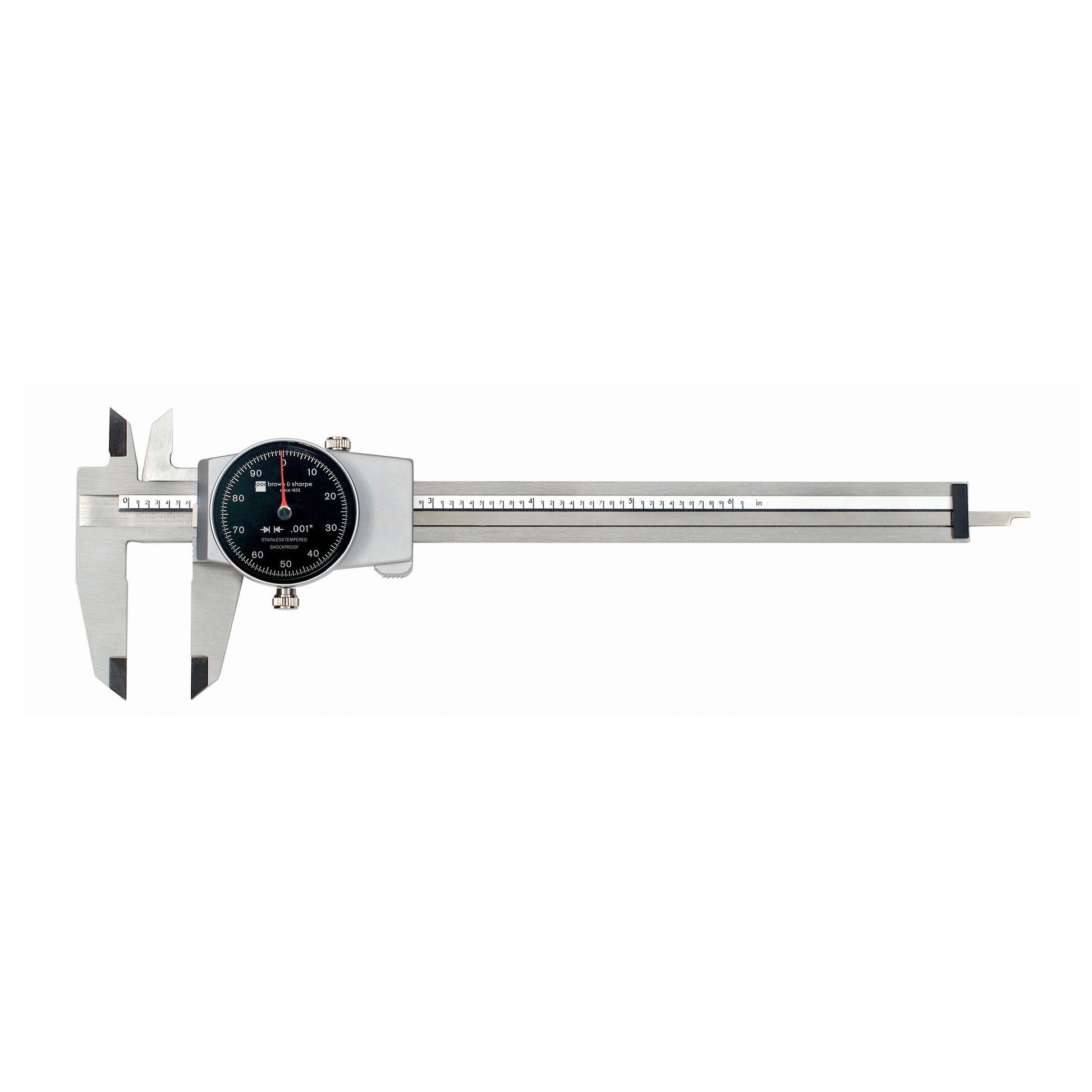

Black dial and red pointer
Rotary
With locking screw
Particular characteristic(s) Integrated shockproof system
With locking screw
Included in delivery Caliper
Measurement report
Declaration of conformity
Country of Origin China
Movement Made in Switzerland
User Manual ▼

Official Product Manual & Documentation

Access official specifications, operating instructions, and maintenance guidelines for your precision measuring tool.

Download PDF
Product Description ▼

Note: The 6in. Black Dial version requires extended lead time, with shipping scheduled for October.


Experience smooth, effortless sliding and exceptional readability with our precision dial caliper. Designed for both comfort and long-term reliability, it features a large high-contrast dial and a robust build that stands up to daily use.

At its heart is the Swiss Core™ Movement — the critical internal gears and transmission mechanism are manufactured and assembled in Switzerland. This Swiss precision engineering delivers outstanding accuracy, smooth operation, and superior durability over years of service.

  • Silky-smooth slider movement with thumb roller (8" and 12" models)
  • Integrated shockproof system protects the gear mechanism for enhanced longevity and measurement stability
  • Robust zinc-aluminum alloy housing with hardened stainless steel beam
  • Large 1.2" diameter dial with high-contrast black face and red pointer
View full details

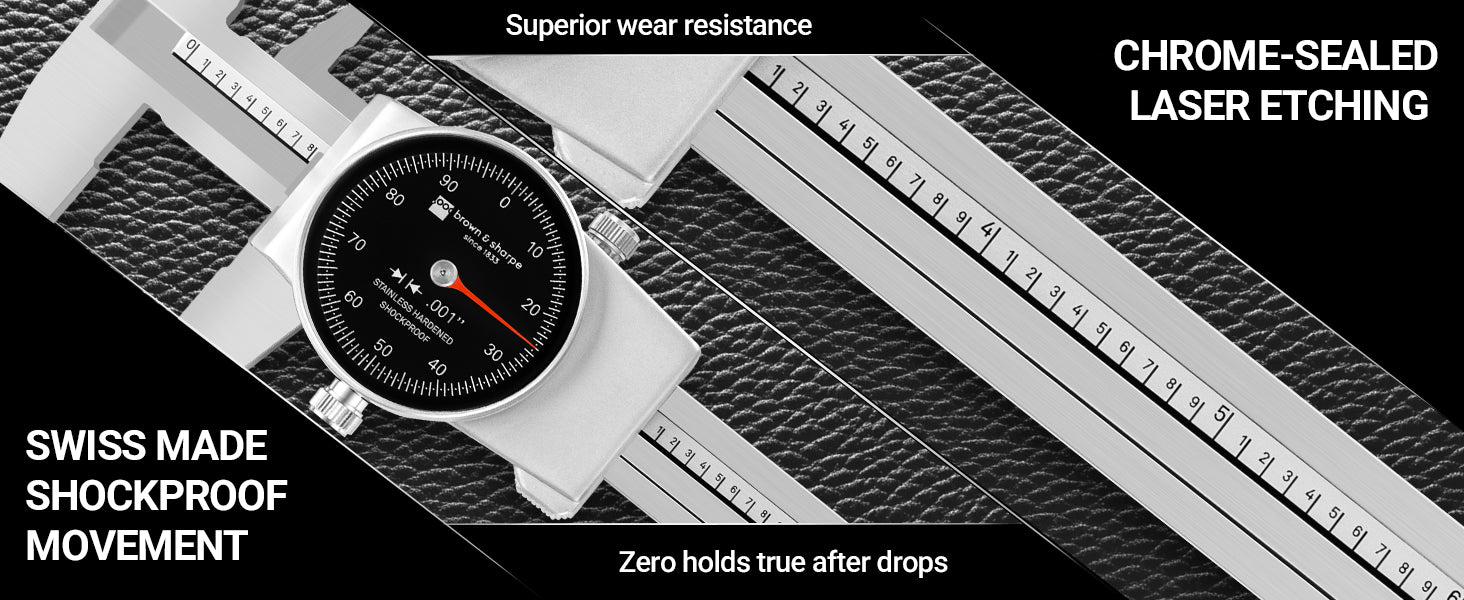

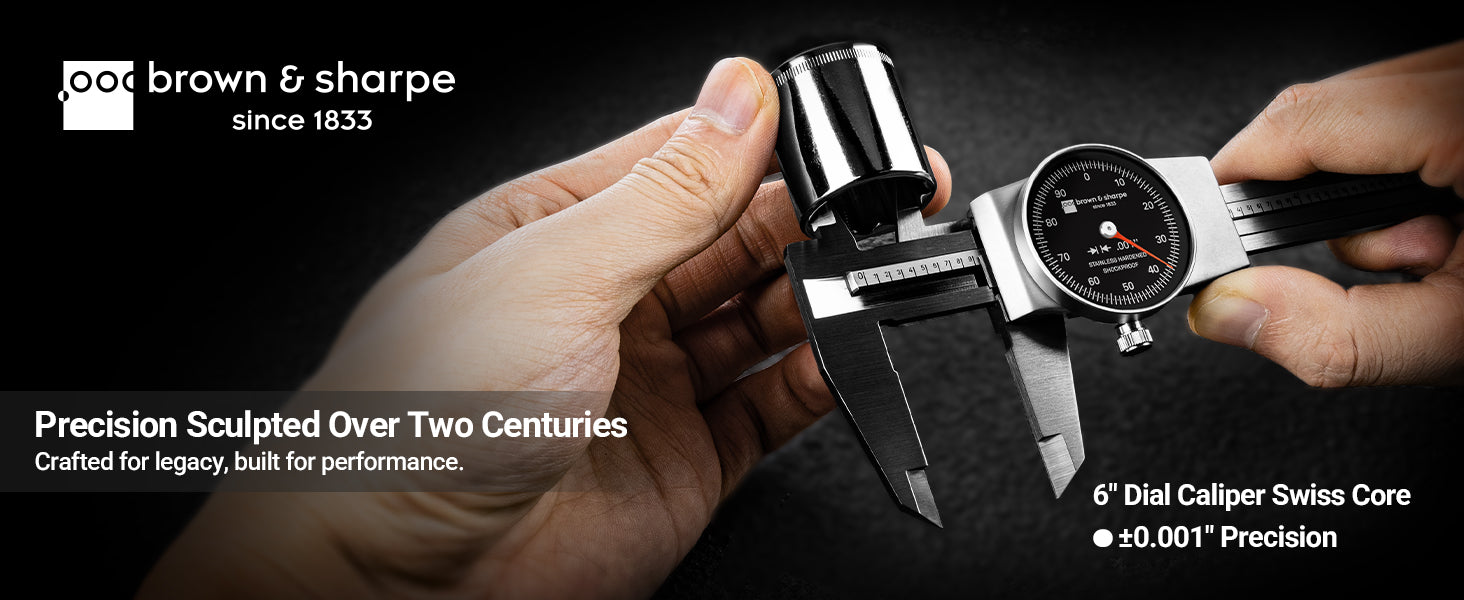

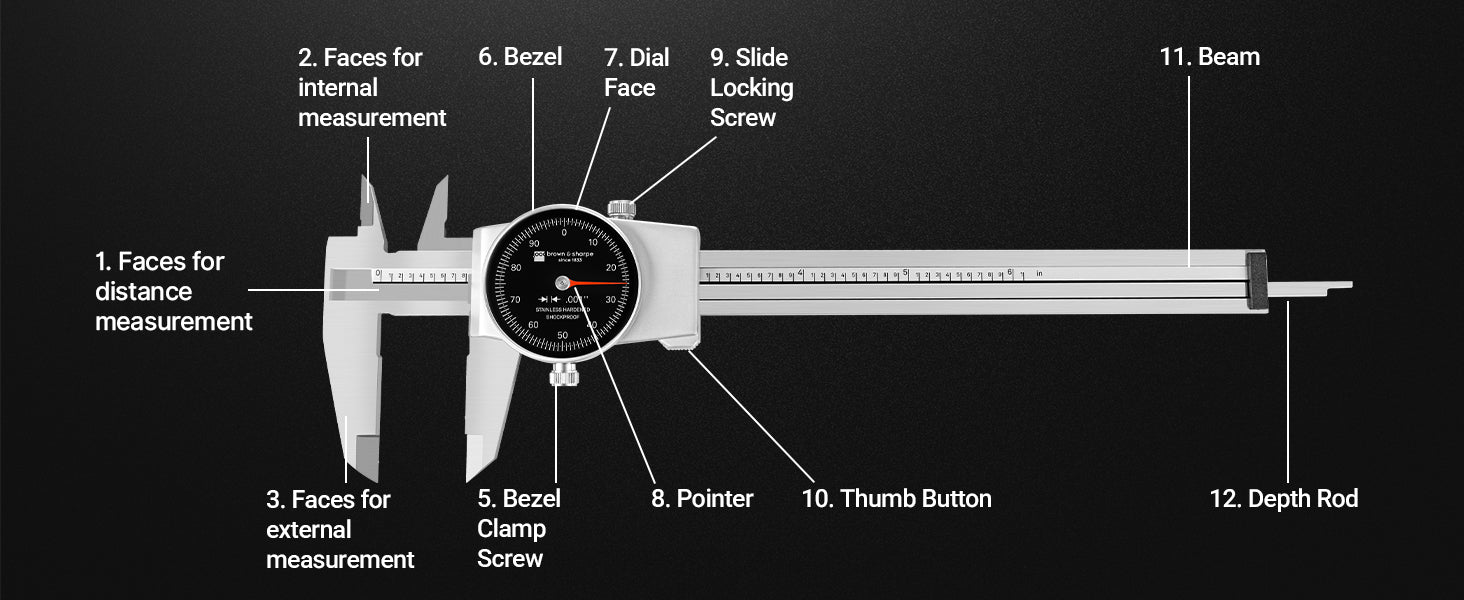

Brown & Sharpe 6‑inch Swiss‑core dial caliper real‑world measuring‑scene banner, ±0.001‑inch measuring precision Brown & Sharpe dial caliper feature banner, Swiss‑made shock‑proof movement and chrome‑sealed laser‑etched scale Brown & Sharpe dial caliper multi‑function display banner for outer‑diameter, inner‑diameter, step‑height and depth measurement Labeled‑part structural diagram of Brown & Sharpe dial caliper Brown & Sharpe dial caliper maintenance notice and safety caution illustration
