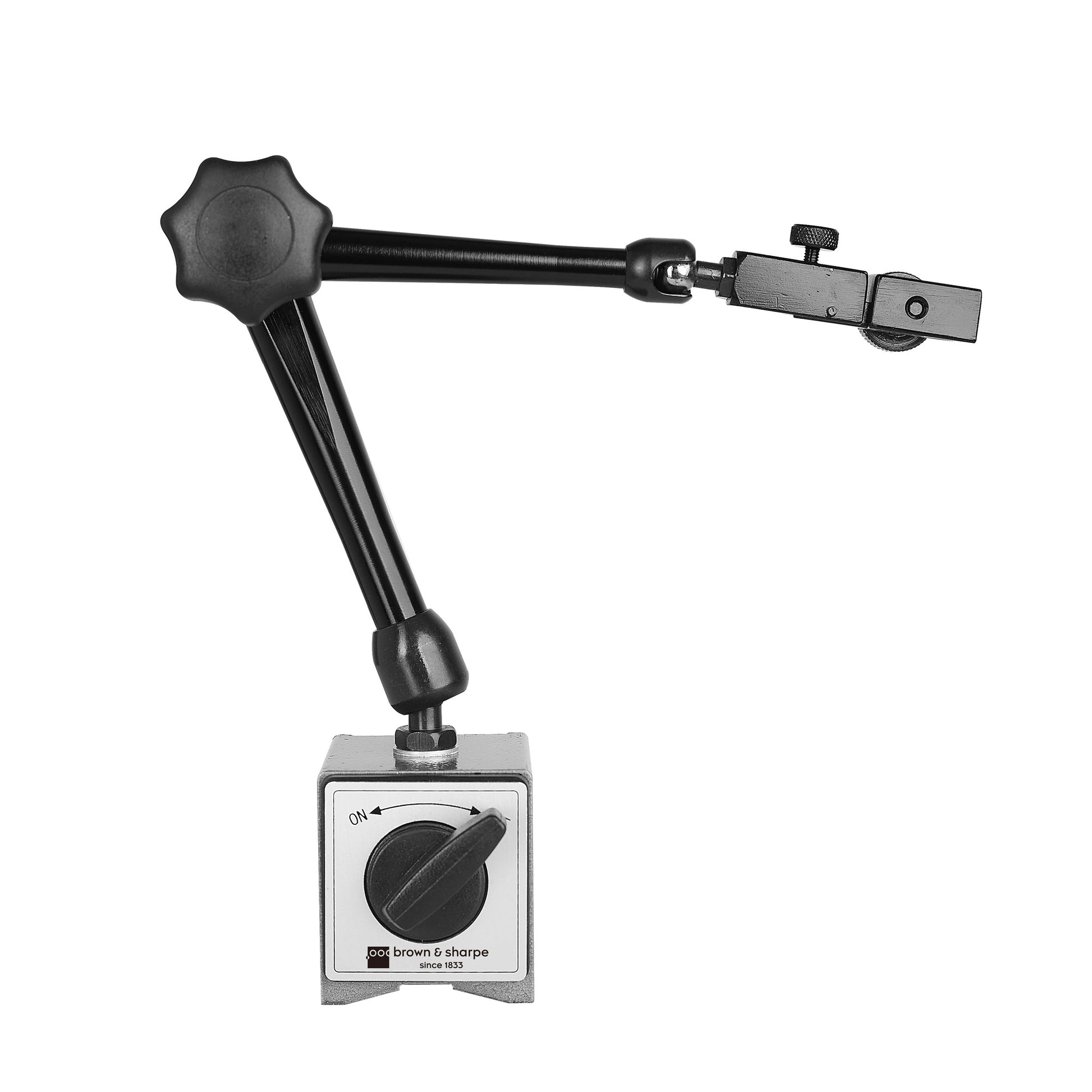

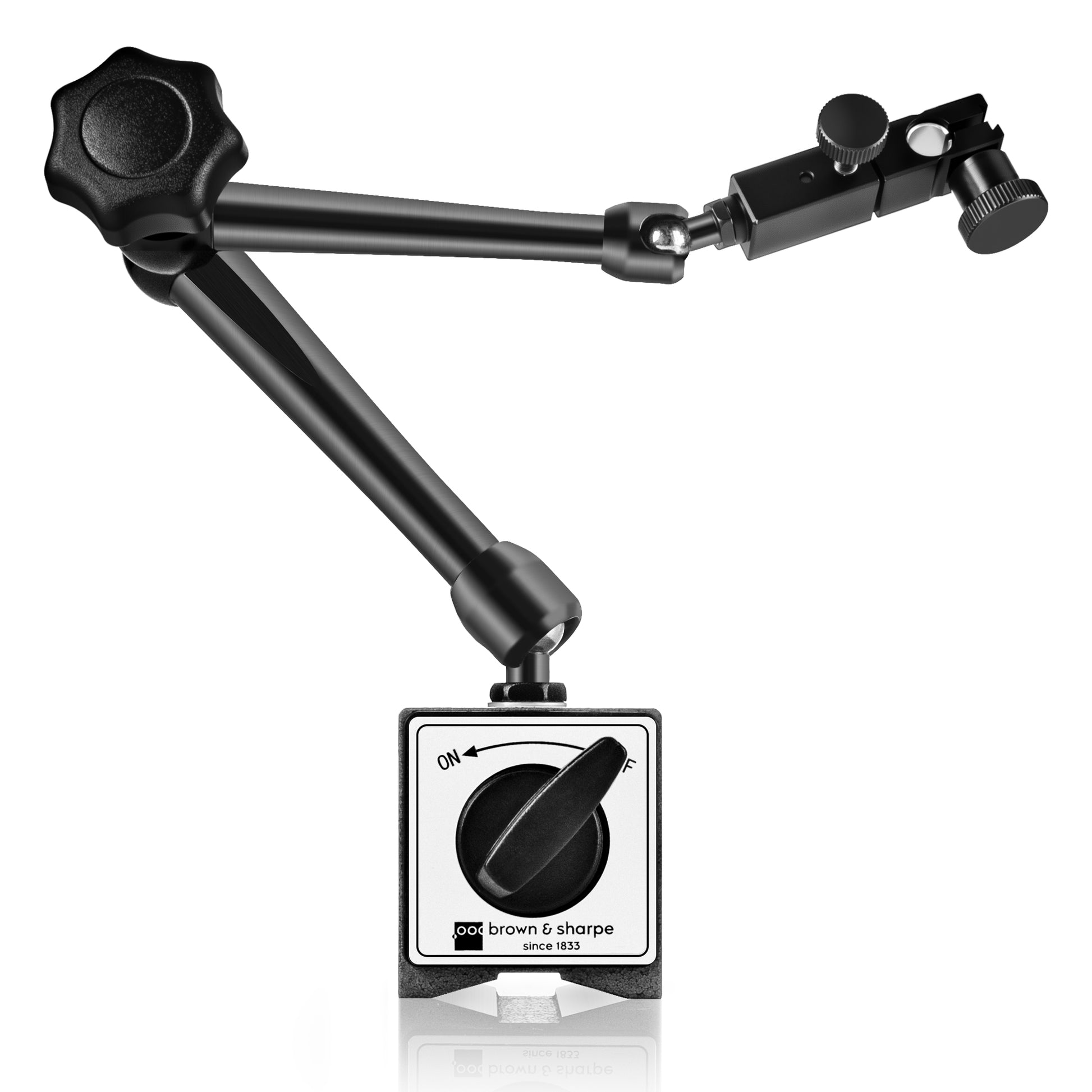

• Articulated Support With Magnetic Base on white background

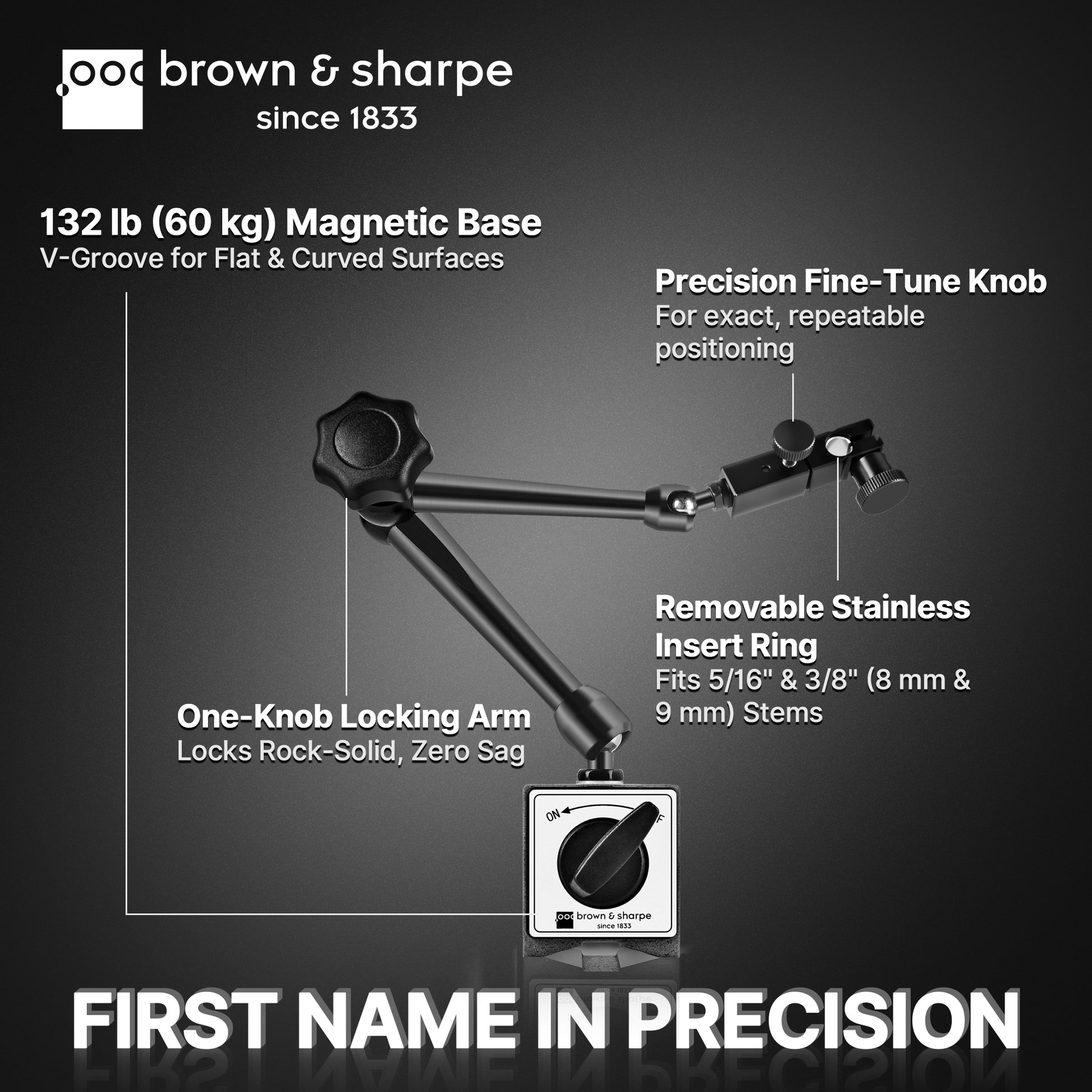

  • Articulated Support With Magnetic Base featuring an articulated locking arm, fine-tune knob, and stainless insert ring, displayed against a black background with labeled features and the slogan “FIRST NAME IN PRECISION” at the bottom—the ideal dial indicator holder for precision work.

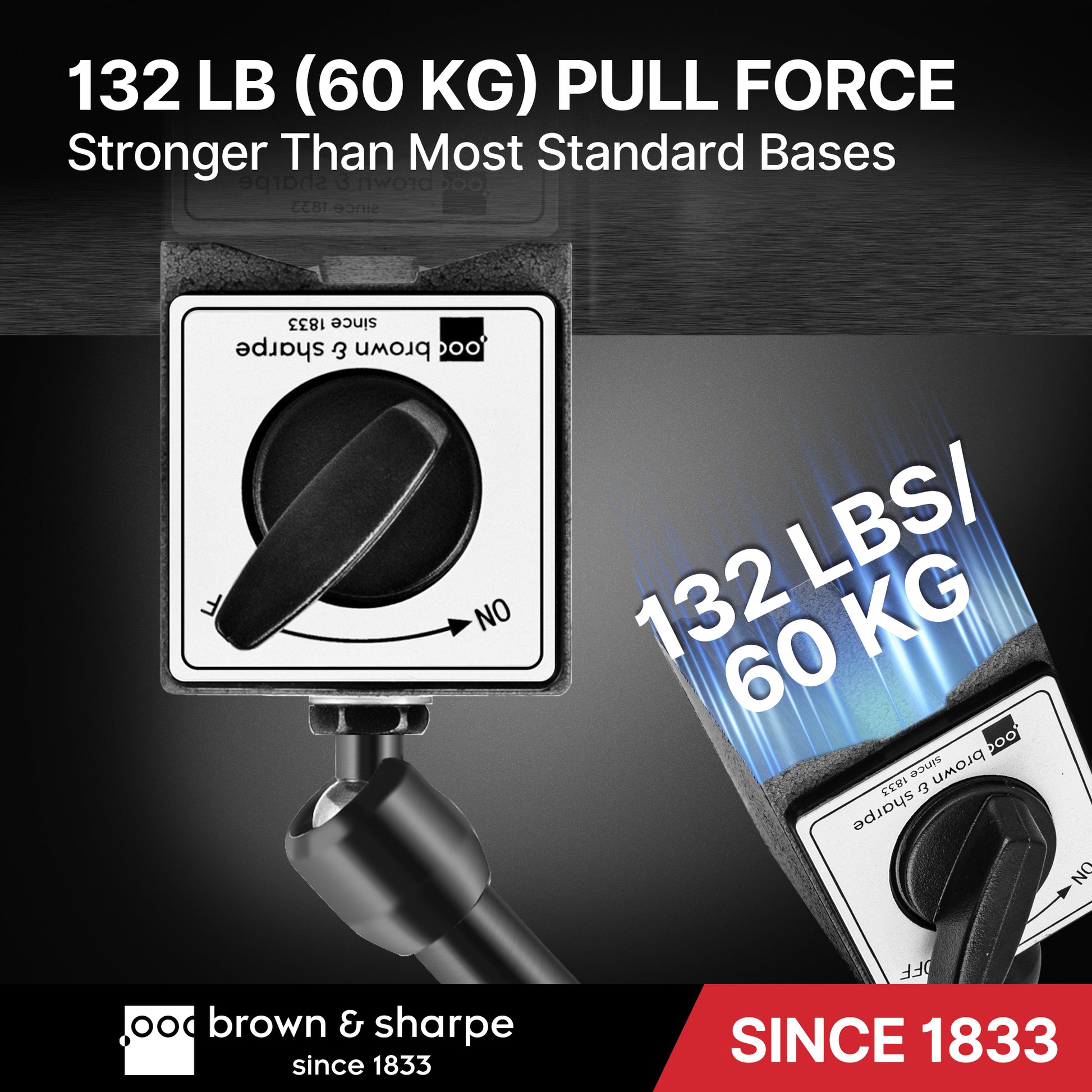

  • Brown & Sharpe magnetic base close‑up display, 132 lb 60‑kg strong pull‑force

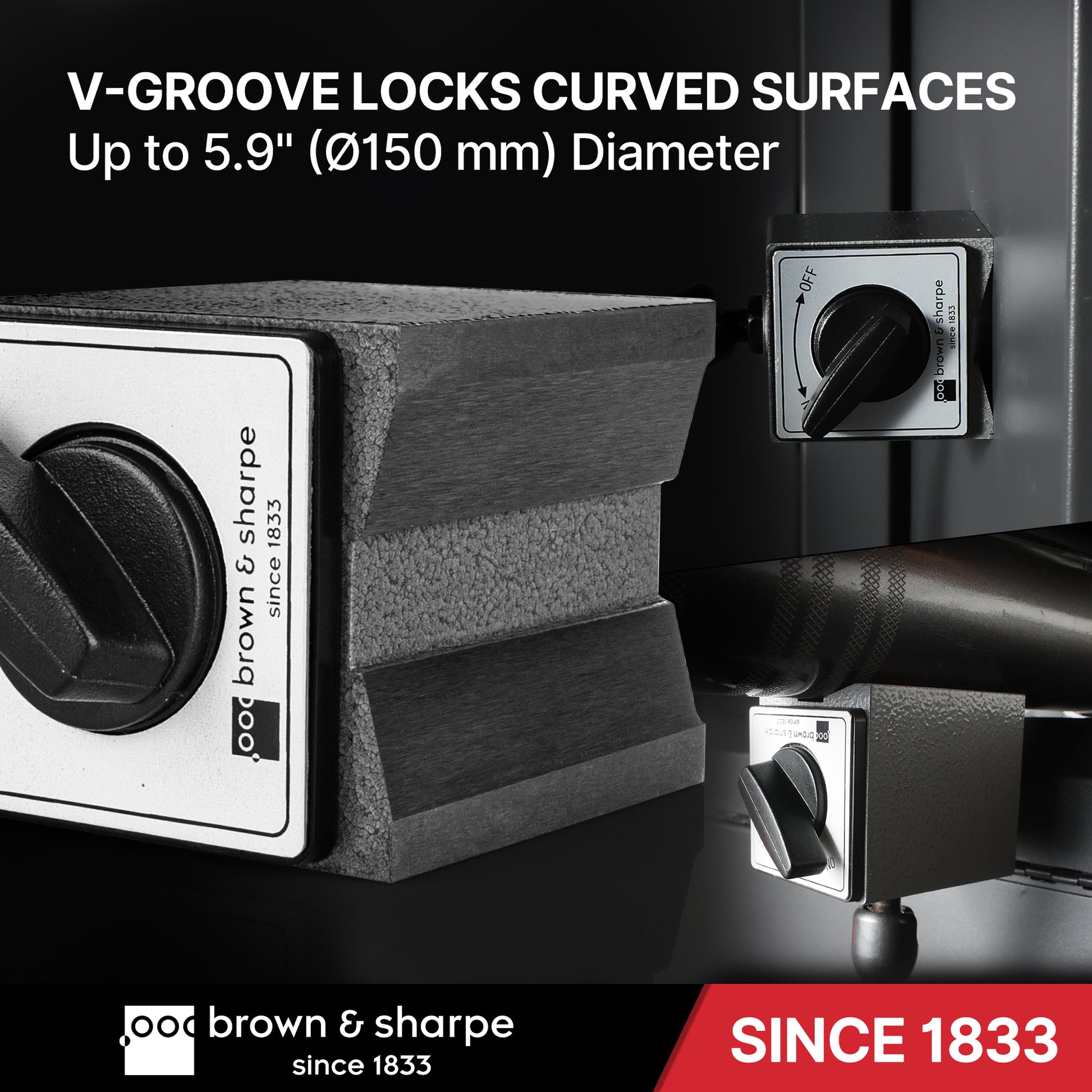

  • Brown & Sharpe magnetic base V‑groove application demonstration for curved surfaces up to 150‑mm diameter

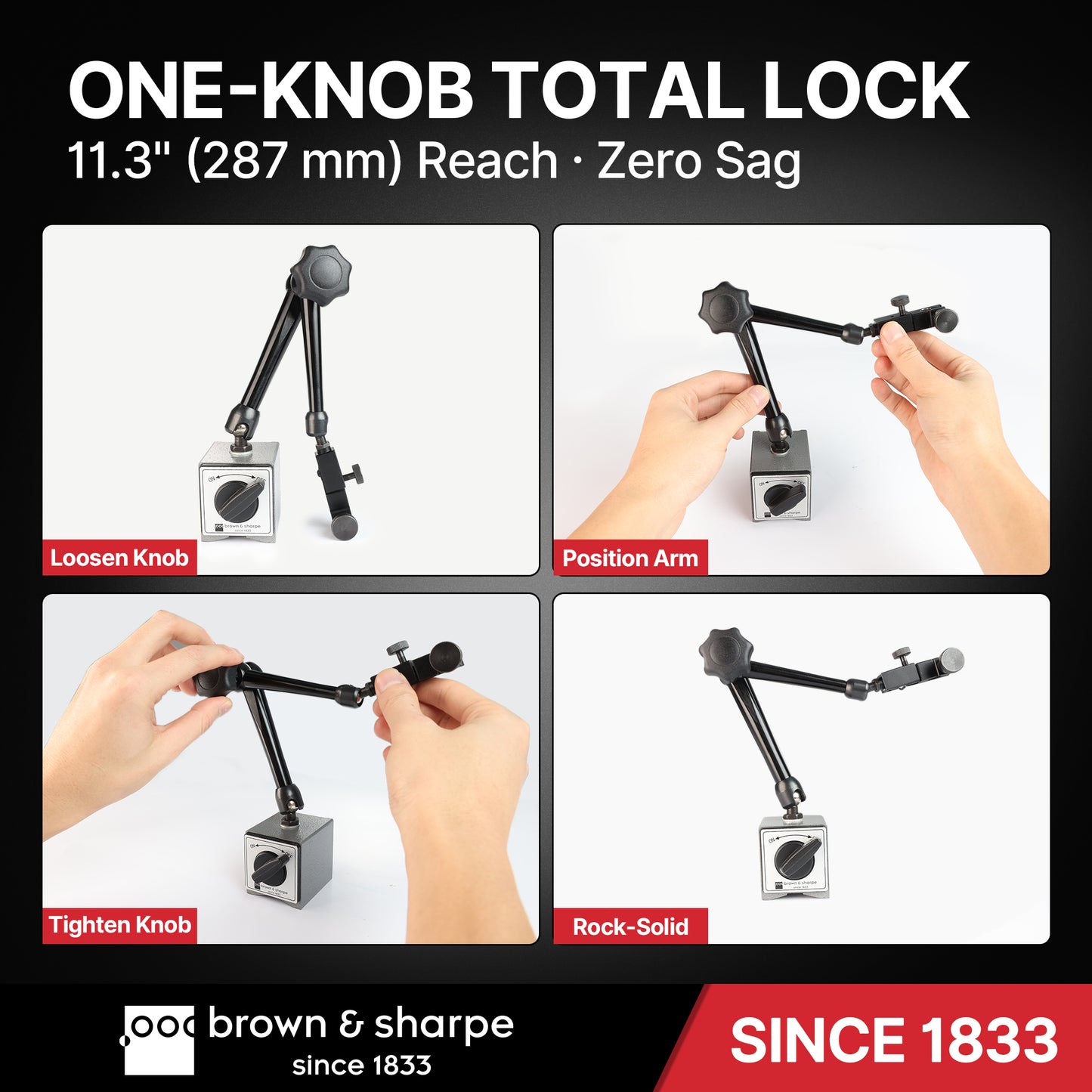

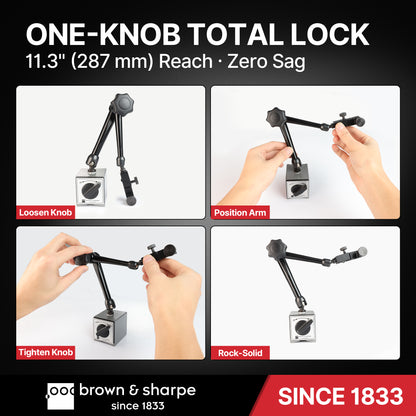

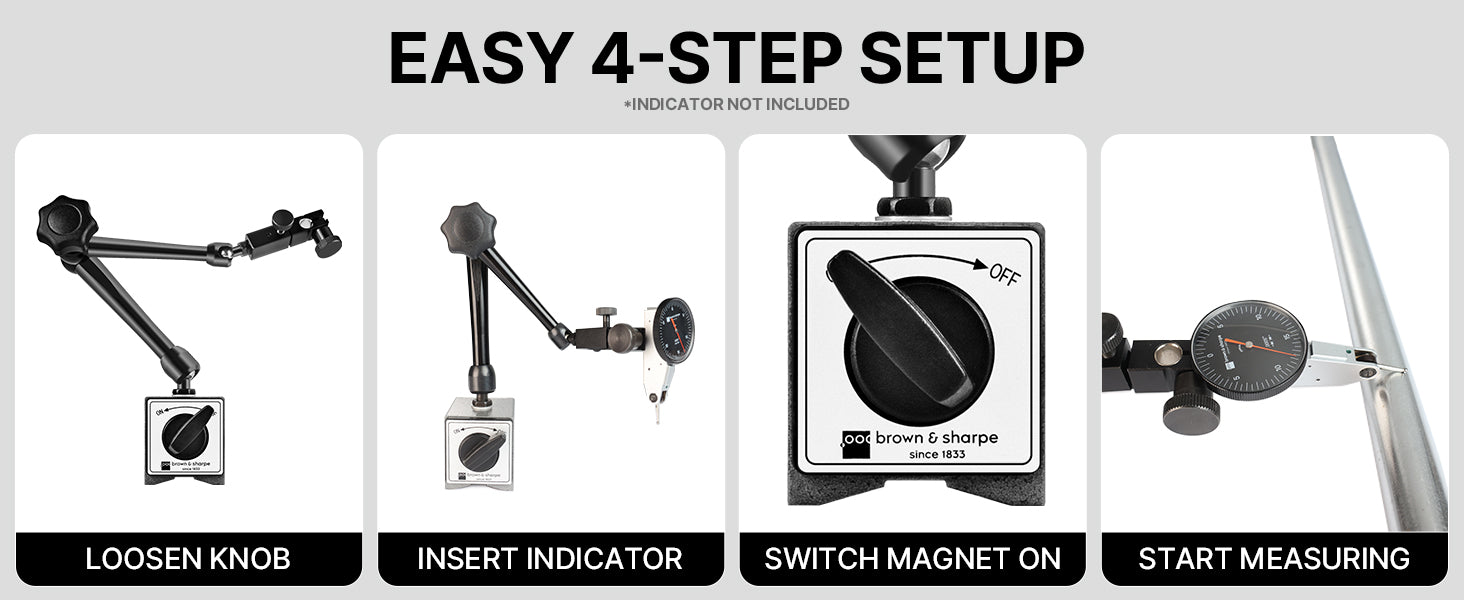

  • Four‑step operation guide for Brown & Sharpe one‑knob locking articulated magnetic stand, 287‑mm working reach

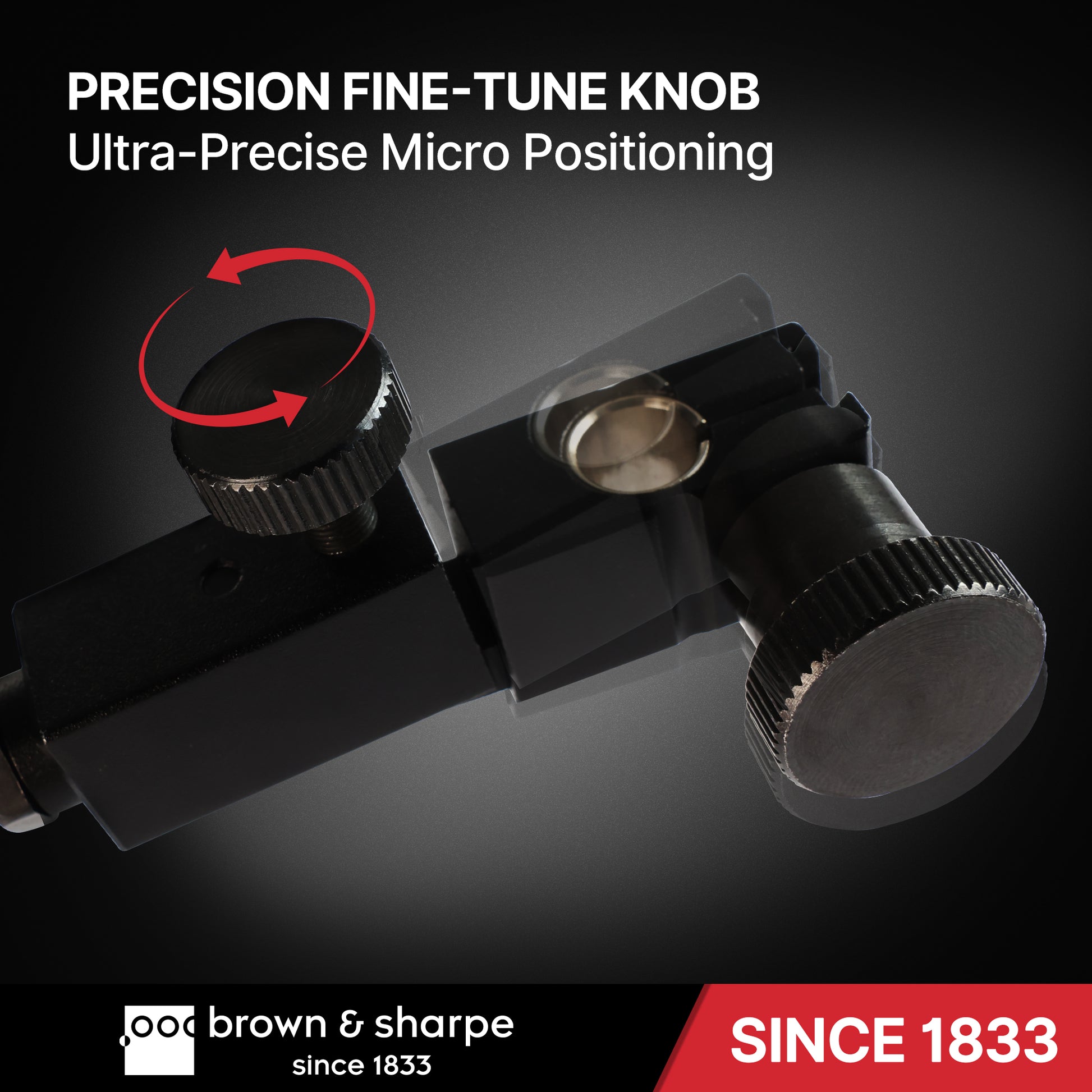

  • Close‑up view of precision fine‑tune knob for Brown & Sharpe articulated magnetic stand for ultra‑accurate micro adjustment

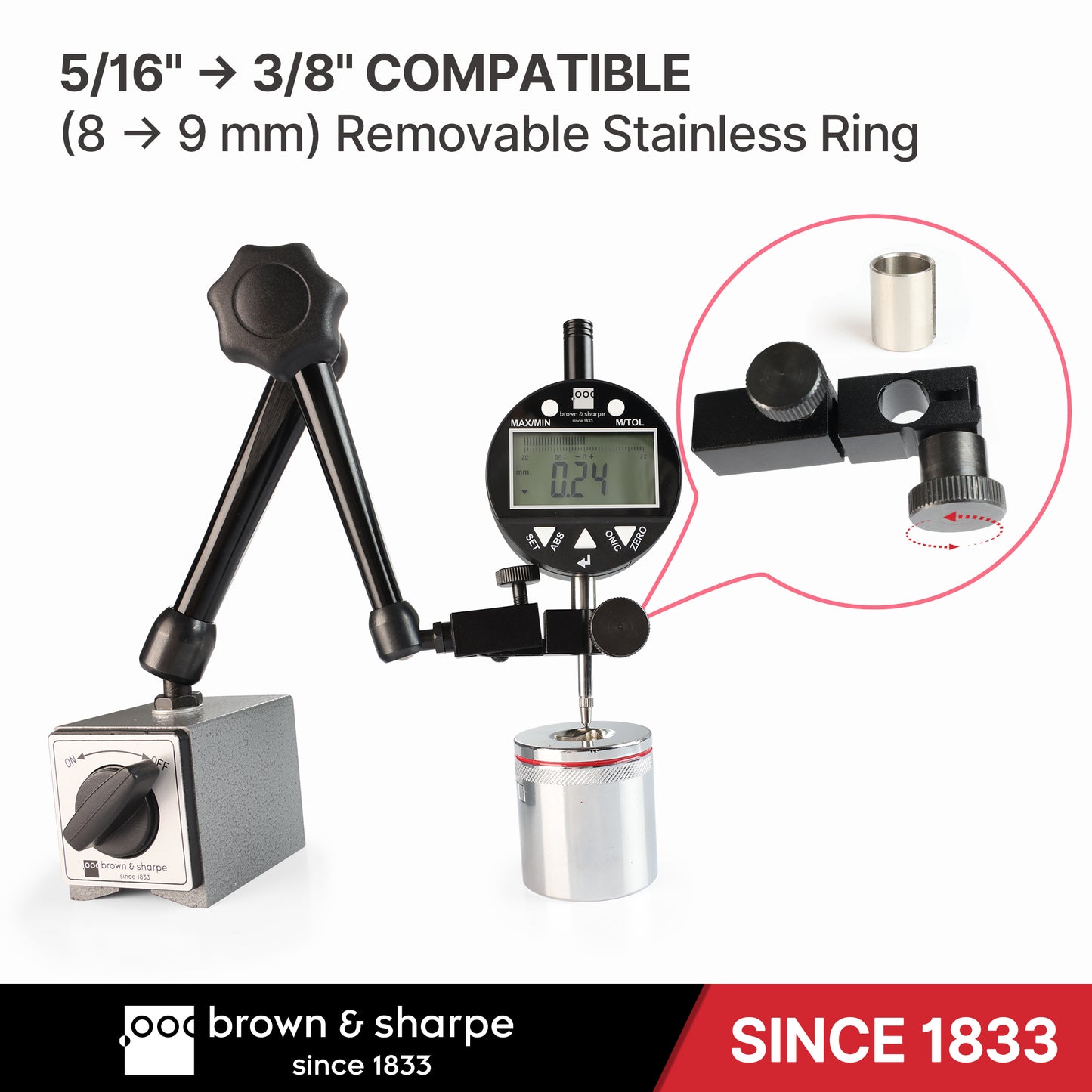

  • Brown & Sharpe magnetic indicator stand fitted with removable stainless adapter ring compatible with 8‑mm and 9‑mm dial gauge stems

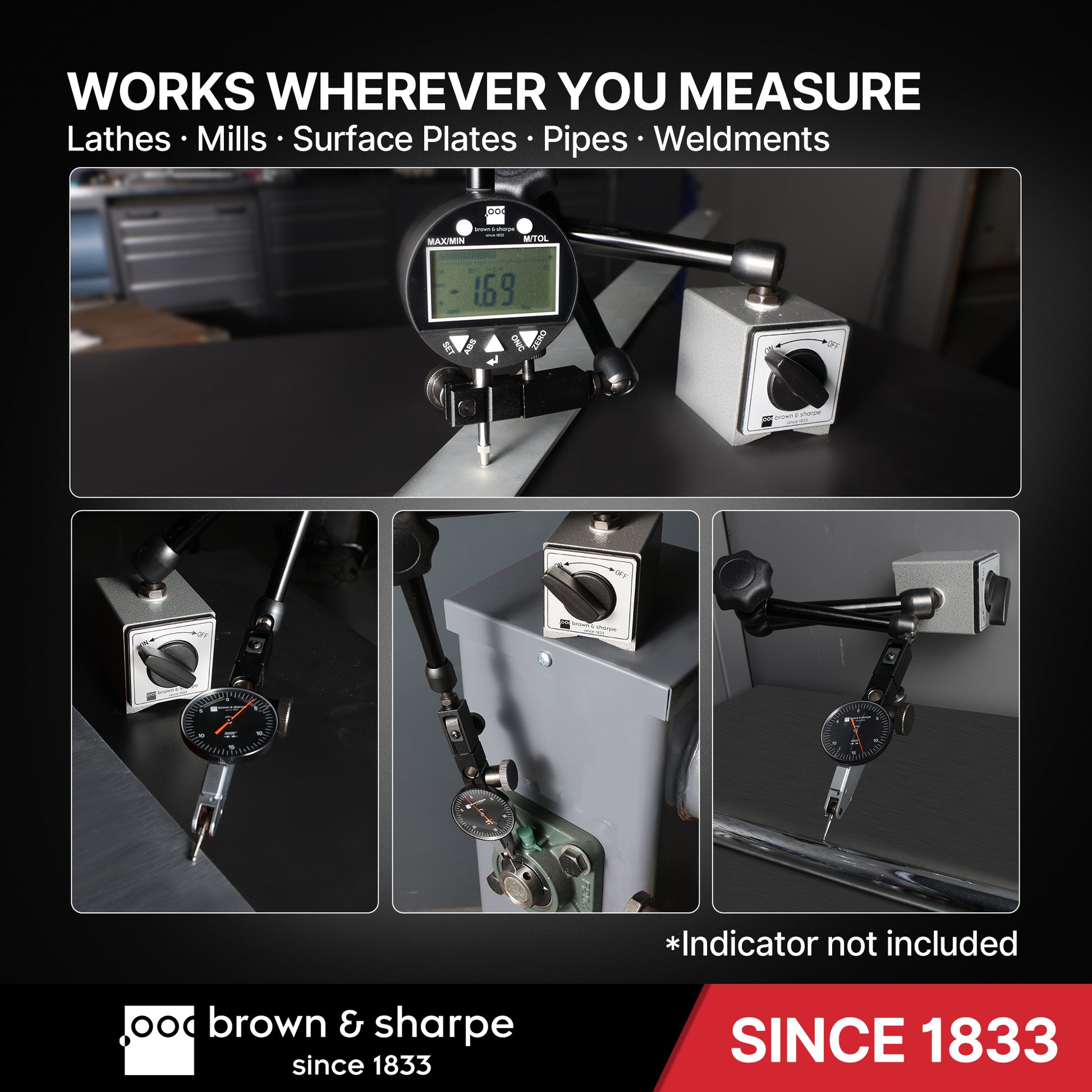

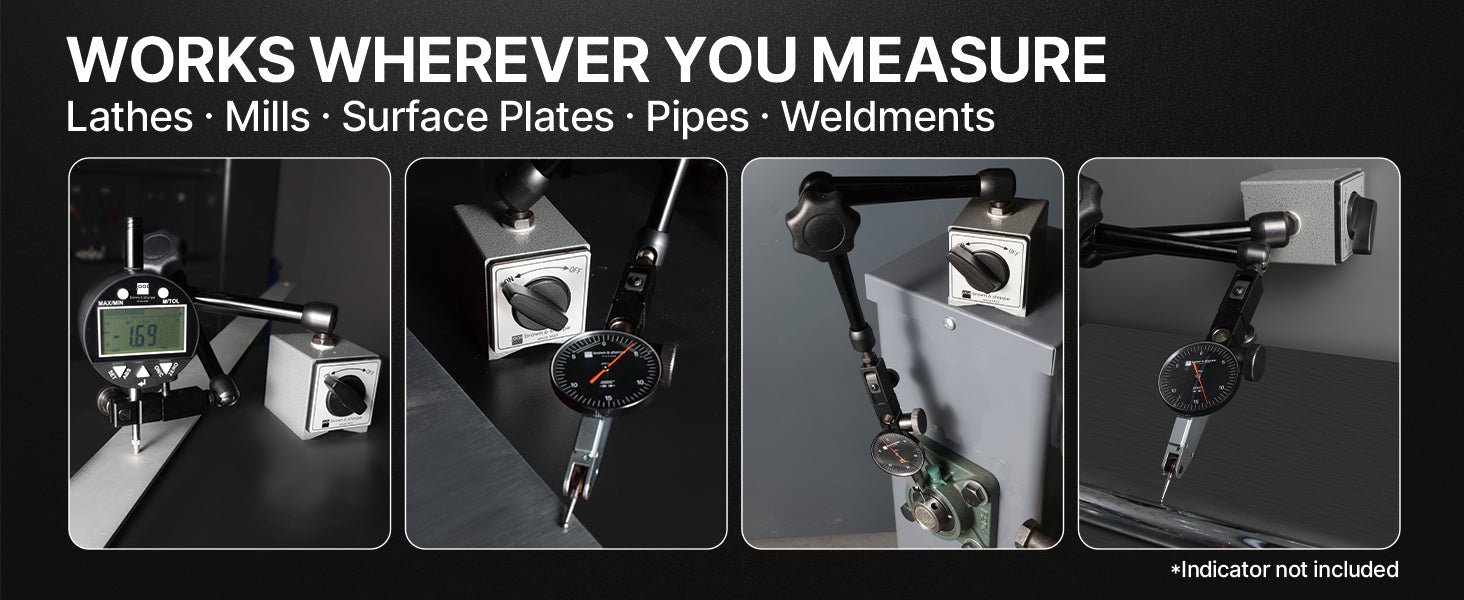

  • Multi‑scenario application display of Brown & Sharpe magnetic dial‑indicator stand for lathes, milling machines, surface plates, pipes and weld‑pieces, indicator excluded
1 8

Articulated Support With Magnetic Base

Articulated Support With Magnetic Base

SKU: B01639058

$94.99
$94.99
Sale Sold out

Specifications ▼
Material Metallic
Dimension Base: LxWxH 2.3"*2"*2.2"
Extension arm length:4.4" & 4"
Function With fine adjustment
Surface tretment Painting
Dimension of clamping device Ø8H8 mounting hole & dovetail groove
Max Pull Minimum 588N
Country of Origin China
Product Description ▼

Engineered for precision and built to last, the Brown & Sharpe Articulated Magnetic Base is the ultimate tool for securely holding dial indicators, test indicators, and other measuring instruments.

Powerful 132 lb (60 kg) Magnetic Base with V-Groove design, firmly attaches to both flat and curved surfaces.

One-Knob Locking Arm – Locks rock-solid with zero sag for maximum stability.

Precision Fine-Tune Knob – Allows exact and repeatable positioning adjustments.

Removable Stainless Steel Insert Ring – Compatible with 5/16" & 3/8" (8 mm & 9 mm) stems.

Fully Articulated Arm – Offers flexible reach and smooth movement in any direction.

View full details

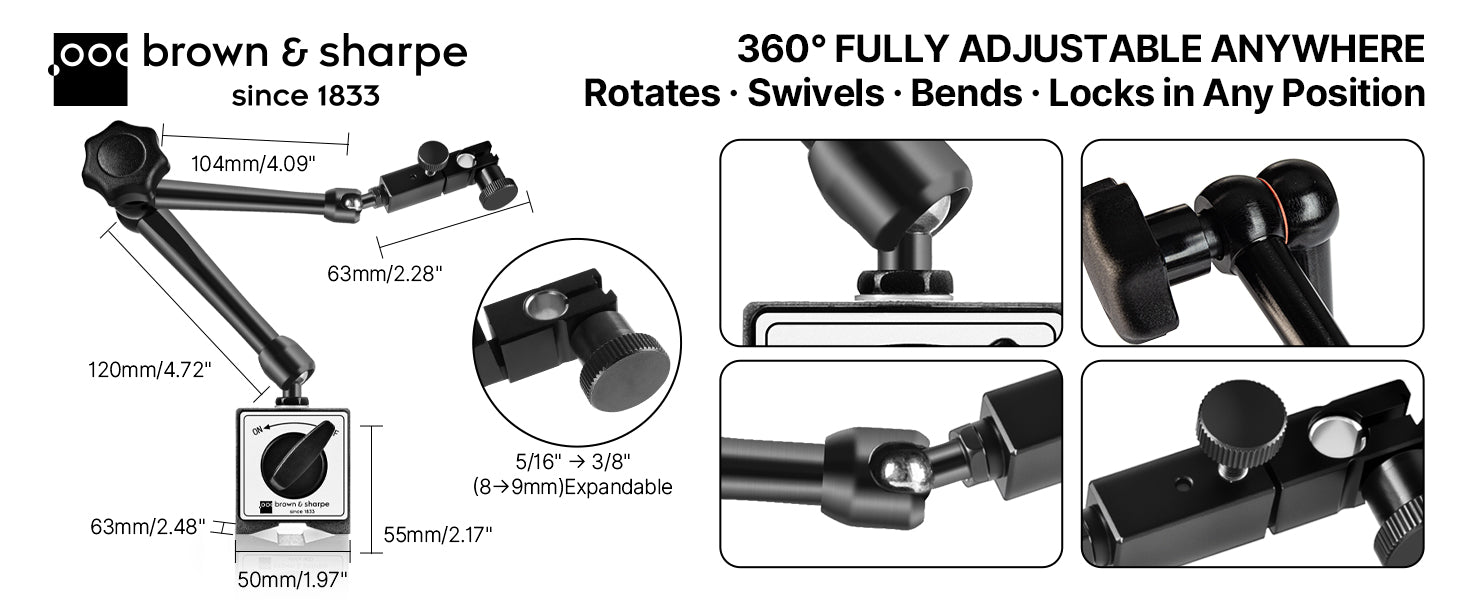

Brown & Sharpe articulated magnetic‑base indicator stand, 60‑kg magnetic pull‑force, powerful heavy‑duty magnetic base 360° FULLY ADJUSTABLE ANYWHERE Rotates · Swivels · Bends · Locks in Any Position Four‑step installation guide for Brown & Sharpe articulated magnetic dial‑indicator stand, loosen knob, install indicator, turn‑on magnet and start measuring, dial gauge not‑included Brown & Sharpe magnetic base indicator stand multi‑scene application for lathes, milling machines, surface plates, pipes and weldments, dial indicator not‑included
