Brown&Sharpe

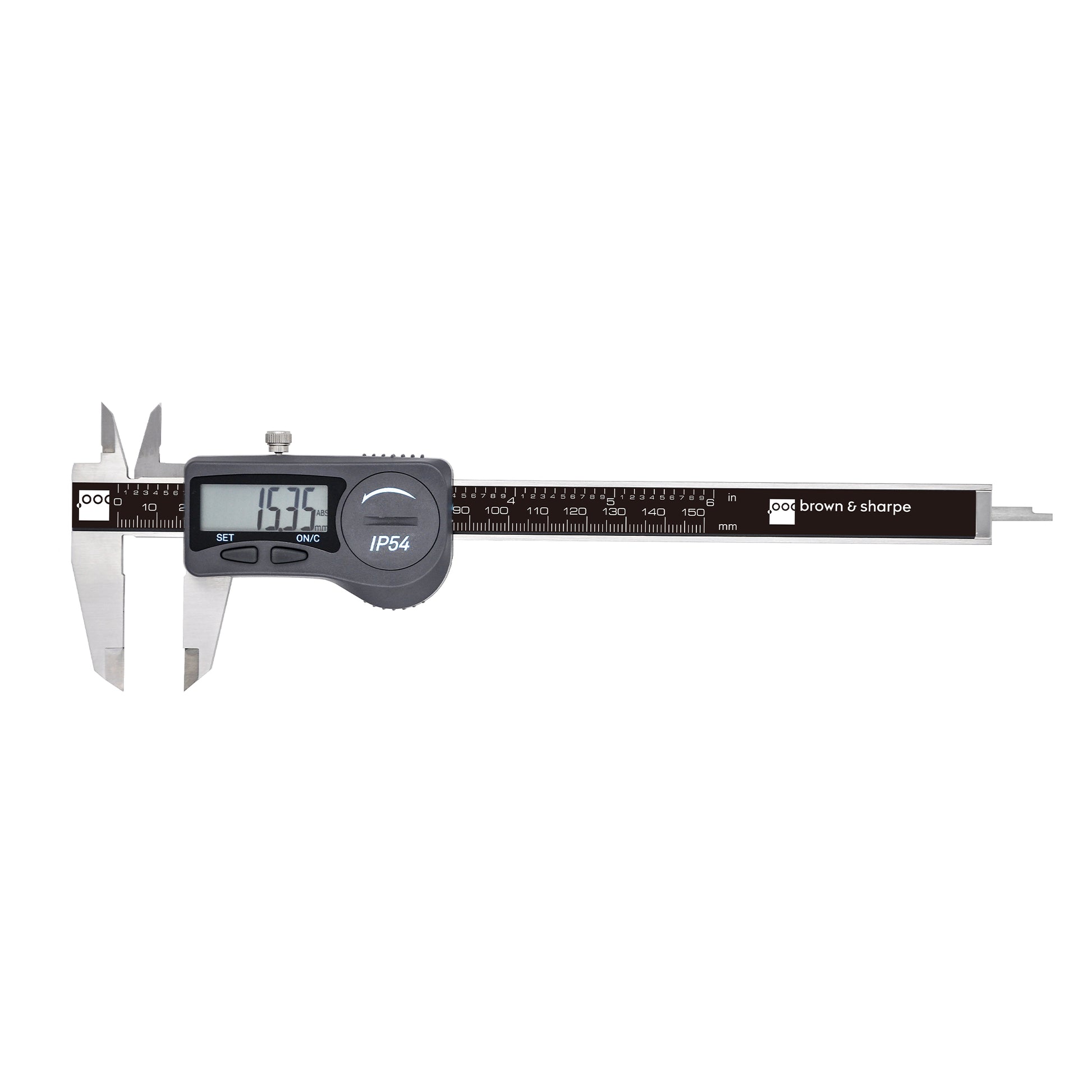

6in./8in./12in. Range Digital Caliper IP54
6in./8in./12in. Range Digital Caliper IP54
Couldn't load pickup availability
• INSTRUMENT
- Perfect operation of the slider for a silky-smooth operation
- Robust construction to ensure longevity and stability of results over time
- Medium degree of protection against dust and liquids
• MEASUREMENT
- Reading comfort with large high-contrast display
- Comfortable handling with ergonomic grip for ease of use
• AUTONOMY
- Long battery life avoiding too frequent battery changes
| Measuring range |
0-150mm/0-6" 0-200mm/0-8" 0-300mm/0-12" |
| Units | mm / in |
| Standard | ISO 13385-1:2019 |
| Max. perm. errors |
L = length in mm 0 < L ≤ 100: ± 20 µm 100 < L ≤ 300: ± 30 µm |
| Resolution | 0,01 mm / .0005 in |
| thumb roller |
6" – No thumb roller 8" / 12" – With thumb roller |
| Zero | floating |
| Material | Stainless steel |
| Degree of protection | IP54 |
| Particular characteristic(s) | Locking screw |
| Display | LCD, font height11mm |
| Power supply | CR2032 button battery |
| Function(s) | Stand-by after 10 min ABS or DIFF mode Low battery indicator |
| Autonomy | 12'000 hours |
| Included in delivery | Caliper with one baterry Measuring report Declaration of conformity |
| Data output(s) | Without TLC port |
