Brown&Sharpe

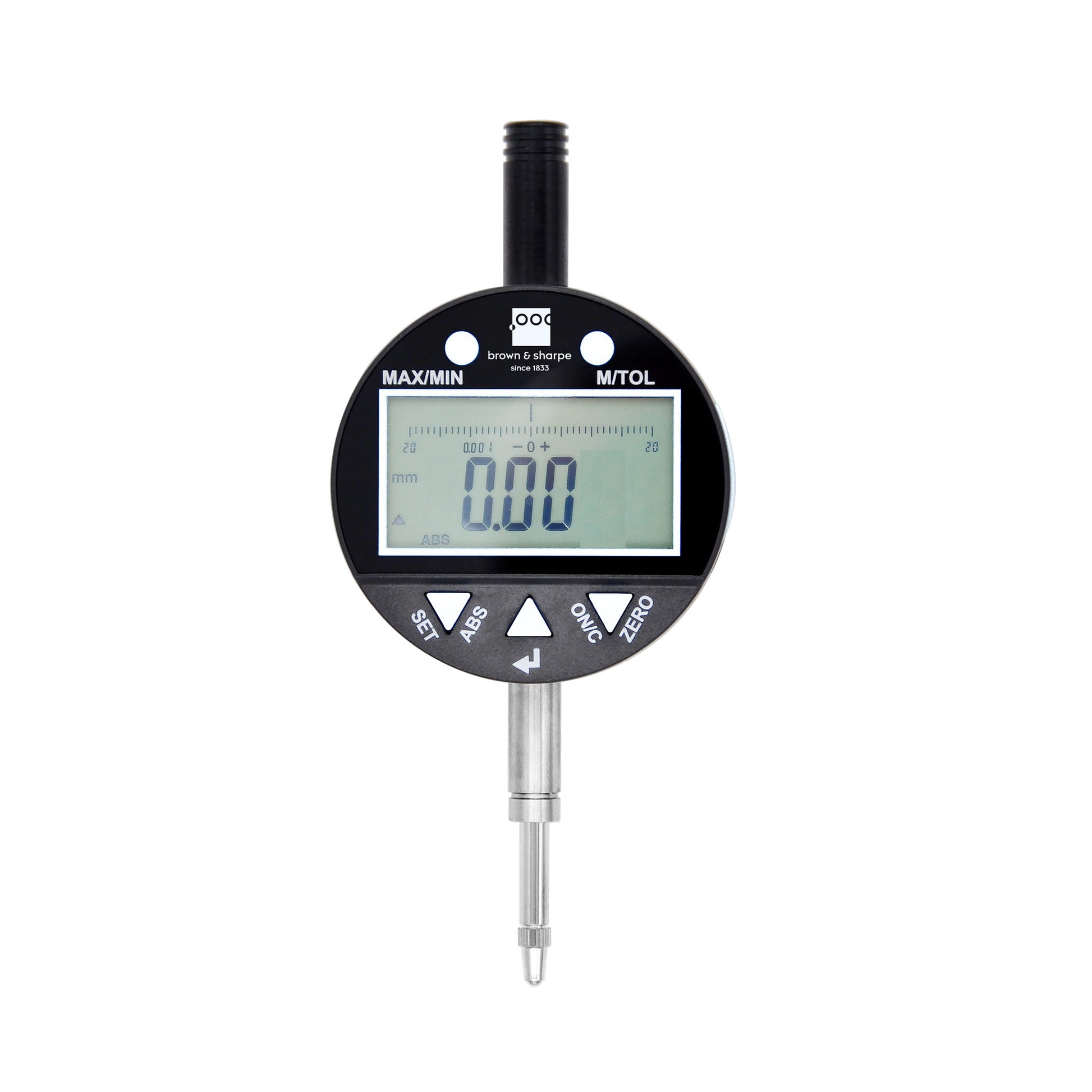

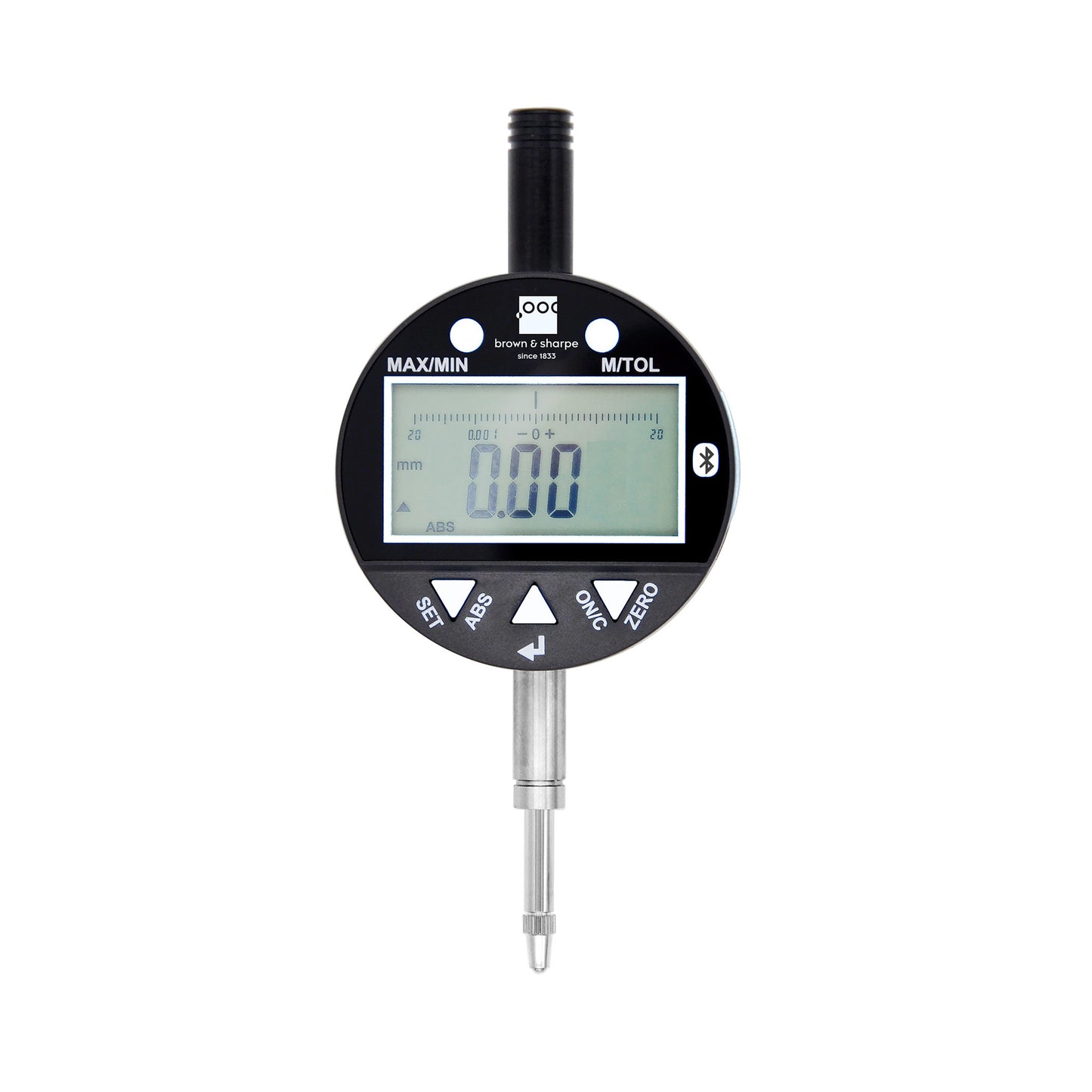

12.7mm/0.5in. Digital Indicator 0.0005"Graduation
12.7mm/0.5in. Digital Indicator 0.0005"Graduation
Regular price
$199.99 USD
Regular price
Sale price
$199.99 USD
Unit price
/
per
Couldn't load pickup availability
• INSTRUMENT
-Zero-setting of display anywhere within the measuring span.
-Two datum points (two measurement directions)
-Out-of-tolerance warning
• MEASUREMENT (functions)
- Max, Min, Max-Min(TIR) Measurement
- Absolute mode
- Analog display
- Preset mode
- Auto OFF
- Custom unattended time
| Specifications | |
| Measuring range | 0-12.7mm/0-0.5" |
| Resolution | 0.01mm/0.0005" |
| Units | mm/in |
| Standard | Dimensions:ISO 463 Performances: Factory standard |
| Repeatability | 10μm |
| Max. perm. Errors | 20μm |
| Degree of protection | IP54 |
| Display | LCD, Digital size: 11mm |
| Maximim preset | 999.99mm/9.9995" |
| Measuring force | Maximum1.5N |
| Dimensions | Insert thread: M2,5 Mounting shank: Ø 8 mm |
| Material | Casing: Metallic Mounting shank: Stainless steel Plunger: Stainless steel |
| Power supply | CR2032 button battery |
| Included in delivery | Digital indicator with battery CR2032 1xCR2032 button battery User manual. Declaration of conformity. |
