Brown&Sharpe

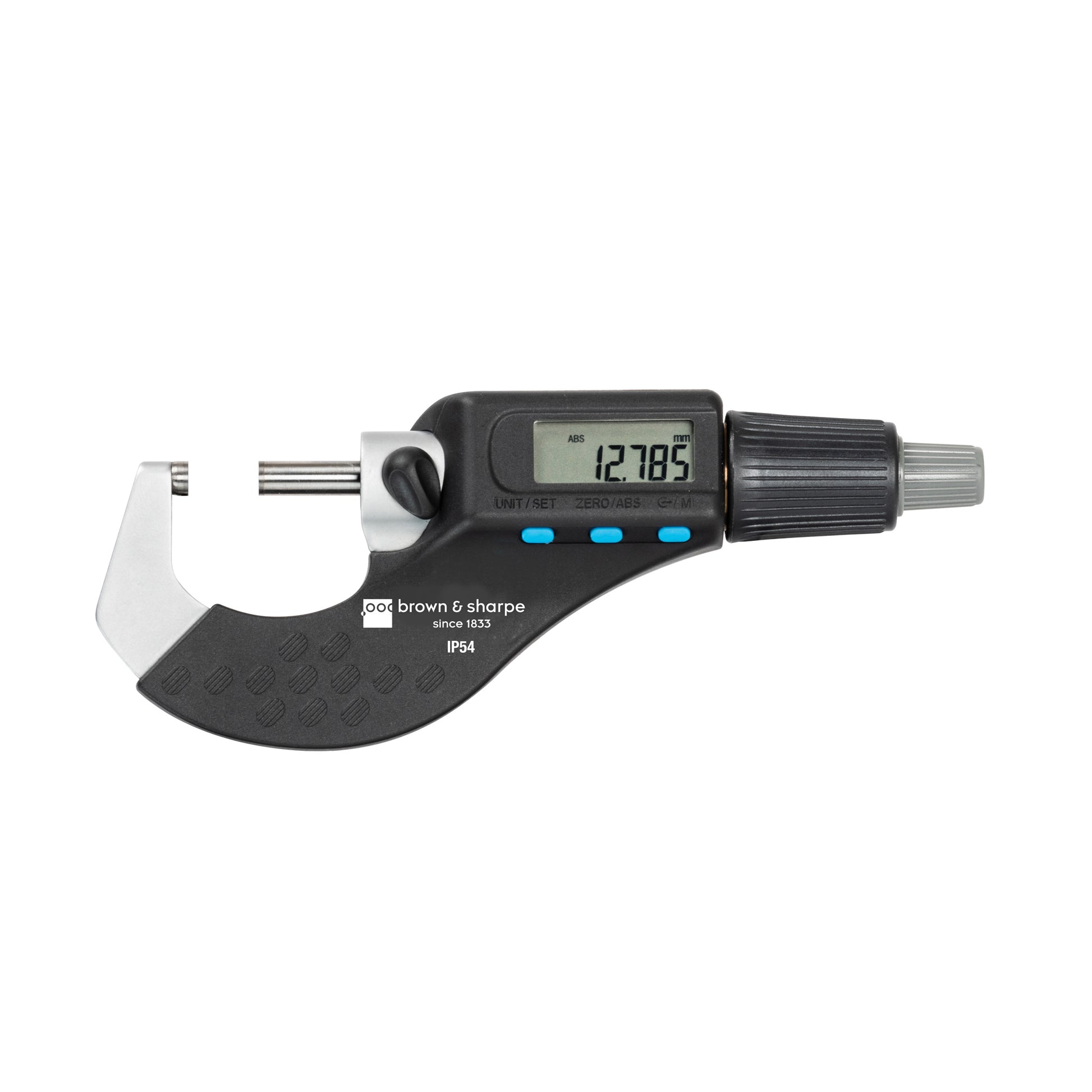

Digital Outside Micrometer IP54 - Available in Multiple Ranges (0-4")
Digital Outside Micrometer IP54 - Available in Multiple Ranges (0-4")
Regular price
$459.00
Regular price
Sale price
$459.00
Couldn't load pickup availability
• INSTRUMENT
-With common functions
-Robust construction to ensure long life and stable results
-High degree of protection against liquids and dust
• MEASUREMENT
-Comfortable reading with large high contrast display
• AUTONOMY
-Long battery life avoiding frequent battery changes
• DATA MANAGEMENT
-odels with or without data transmission
| Measuring range(s) | 0-30mm/ 0-1.2" 25-50mm/1-2" 50-75mm/2-3" 75-100mm/3-4" |
| Resolution | 0.0001mm/0.00005" |
| Zero | Floating |
| Thread pith | 0.5mm/r |
| Degree of protection | IP54 |
| Botton(s) | 3 keys |
| Display | LCD, Digital size: 7mm |
| Power supply | CR2032 button battery |
| Function(s) | Standby after 10 mins Display locking |
| Autonomy | 2,000-4,000 hours |
| Measuring force | ≤10N |
| Units | mm/in |
| Standard | DIN863 T1 |
| Max. perm. Errors | 0-30mm/ 0-1.2" :4μm 25-50mm/1-2" :4μm 50-75mm/2-3" :5μm 75-100mm/3-4" :5μm |
| Material | Tungsten carbide on measuring faces provide wear resistance. |
| Data output(s) | without OPTO-RS232 |
| Included in delivery | Micrometer 1x battery Measurement report Declaration of conformity |
