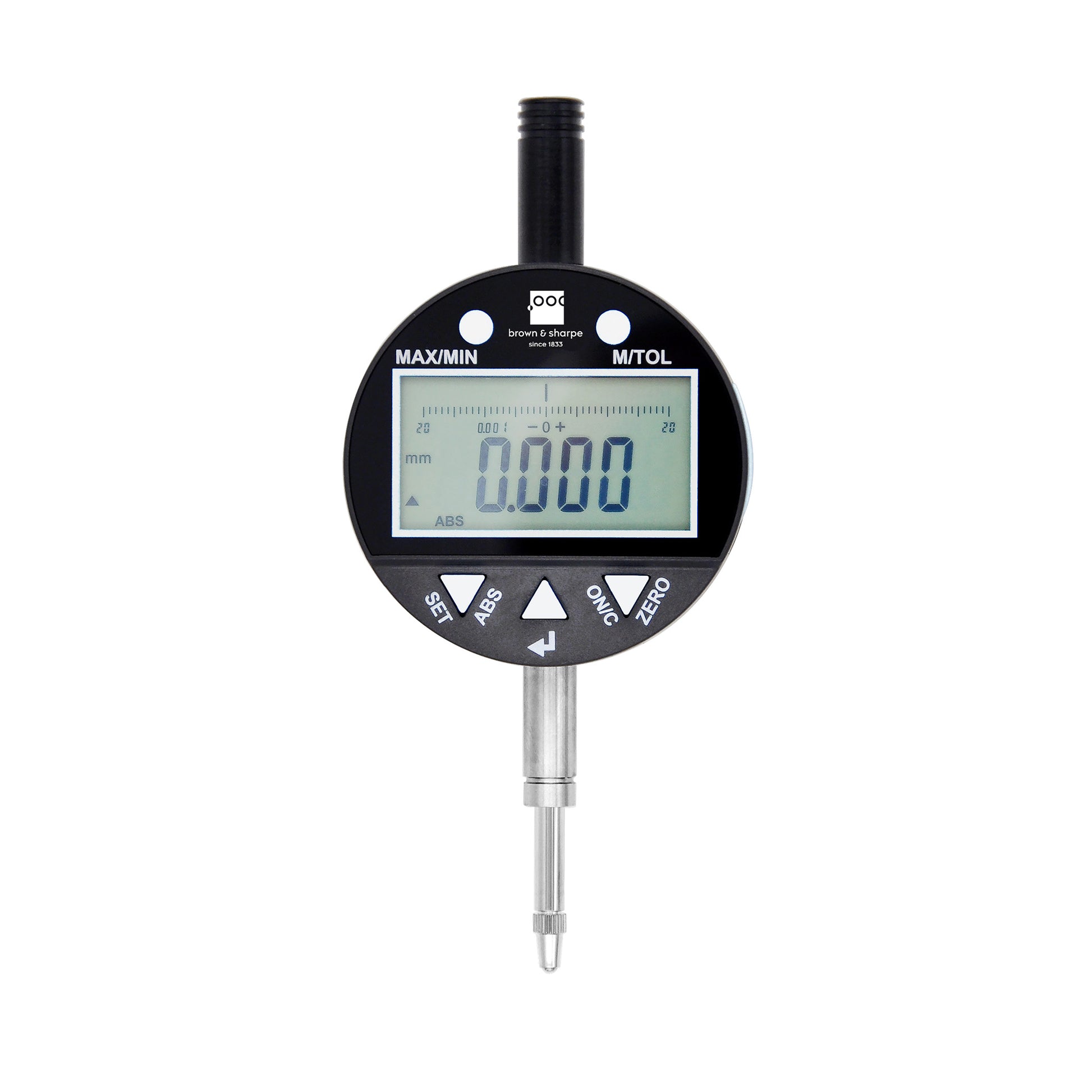

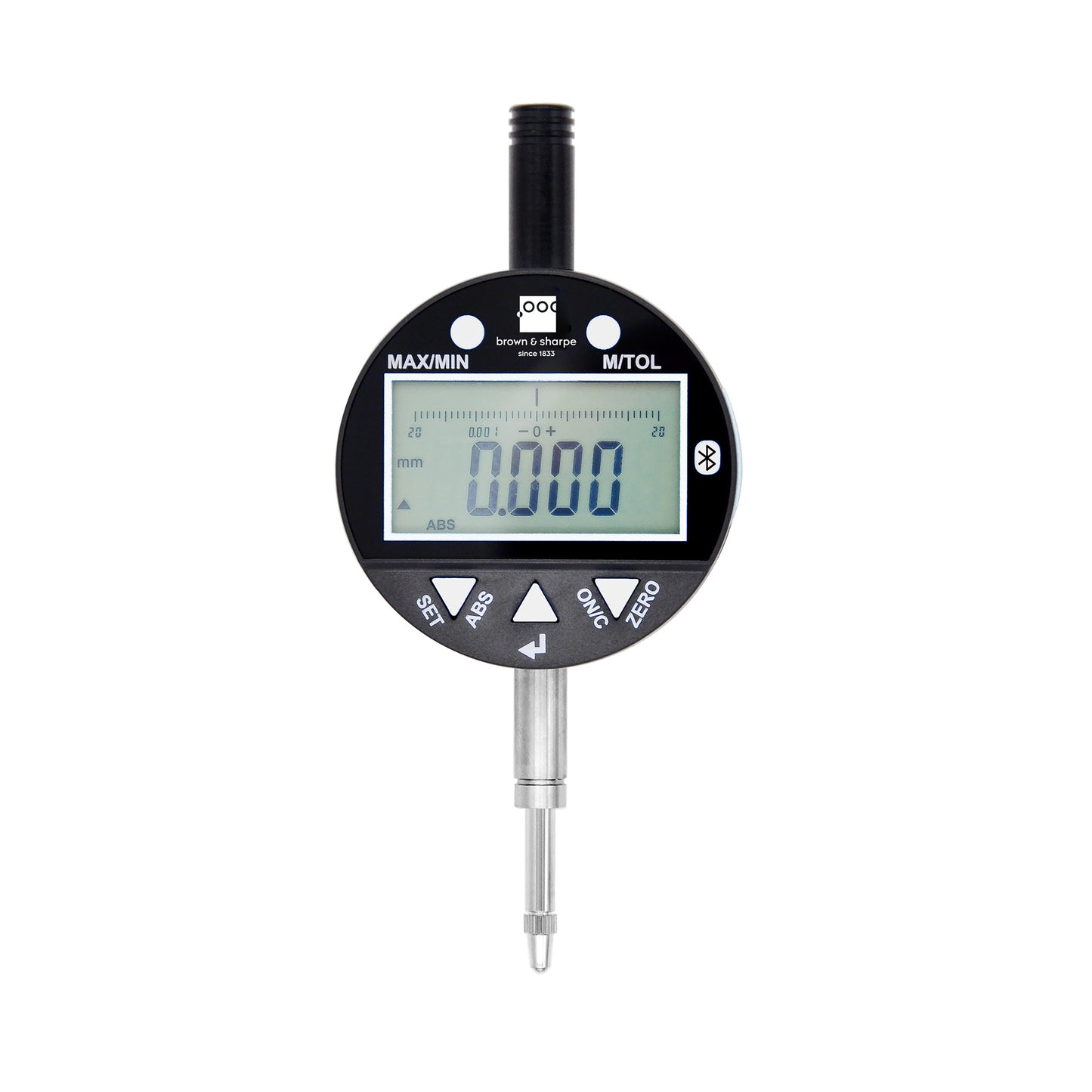

12.7mm/0.5in. Digital Indicator 0.00005"Graduation
12.7mm/0.5in. Digital Indicator 0.00005"Graduation
SKU: Article number: B01939006
Couldn't load pickup availability
| Measuring range | 0-12.7mm/0-0.5" |
| Resolution | 0.001mm/0.00005" |
| Standard | Dimensions: ISO 463 Performances: Factory standard |
| Repeatability | 2μm |
| Max. perm. Errors | 4μm |
| Degree of protection | IP54 |
| Display | LCD, Digital size: 11mm |
| Maximum preset | 999.999mm/9.99995" |
| Measuring force | Maximum1.5N |
| Dimensions | Insert thread: M2.5 Mounting shank: Ø8mm |
| Material | Casing: Metallic Mounting shank: Stainless steel Plunger: Stainless steel |
| Power supply | CR2032 button battery |
| Included in delivery | Digital indicator with battery CR2032 1x CR2032 button battery User manual Declaration of conformity |
| Country of Origin | China |
Official Product Manual & Documentation
Access official specifications, operating instructions, and maintenance guidelines for your precision measuring tool.
• INSTRUMENT
-Zero-setting of display anywhere within the measuring span.
-Two datum points (two measurement directions)
-Out-of-tolerance warning
• MEASUREMENT (functions)
- Max, Min, Max-Min(TIR) Measurement
- Absolute mode
- Analog display
- Preset mode
- Auto OFF
- Custom unattended time
