Brown&Sharpe

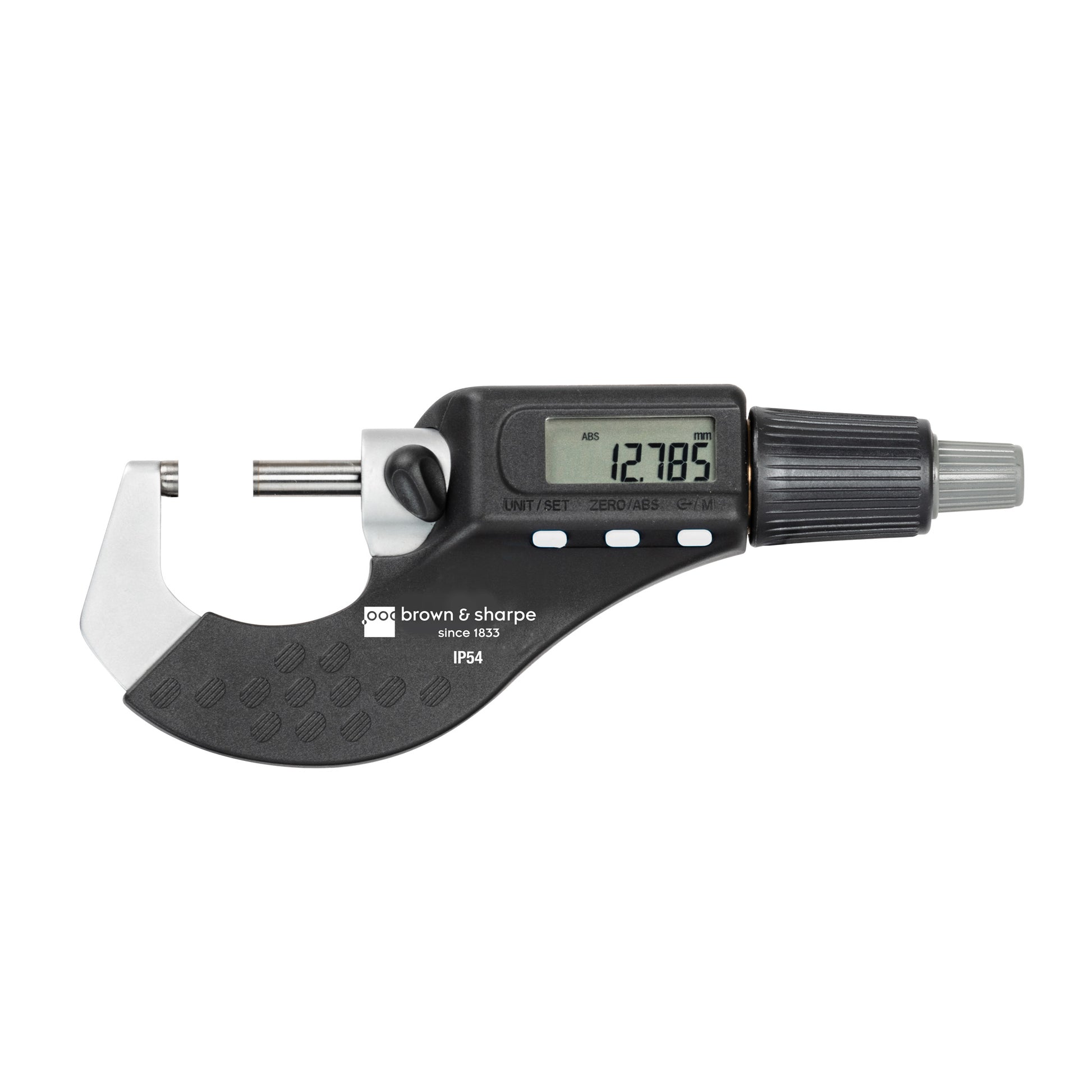

0-1.2 in Digital Outside Micrometer With OPTO-RS232 IP54

0-1.2 in Digital Outside Micrometer With OPTO-RS232 IP54

$529.00 USD
$529.00 USD
Sale Sold out
Measuring range

• INSTRUMENT
-With common functions
-Robust construction to ensure long life and stable results
-High degree of protection against liquids and dust

• MEASUREMENT
-Comfortable reading with large high contrast display

• AUTONOMY
-Long battery life avoiding frequent battery changes

• DATA MANAGEMENT
-odels with or without data transmission



Measuring range(s) 0-30mm/ 0-1.2"
25-50mm/1-2"
50-75mm/2-3"
75-100mm/3-4"
100-125mm/4-5"
125-150mm/5-6"
150-175mm/6-7"
175-200mm/7-8"
200-225mm/ 8-9"
225-250mm/9-10"
250-275mm/10-11"
275-300mm/11-12"
Resolution 0.0001mm/0.00005"
Zero Floating
Thread pith 0.5mm/r
Degree of protection IP54
Botton(s) 3 keys
Display LCD, Digital size: 7mm
Power supply CR2032 button battery
Function(s) Standby after 10 mins
Display locking
Autonomy 2,000-4,000 hours
Measuring force  ≤10N
Units mm/in
Standard DIN863 T1
Max. perm. Errors 0-30mm/ 0-1.2" :4μm
25-50mm/1-2" :4μm
50-75mm/2-3" :5μm
75-100mm/3-4" :5μm
100-125mm/4-5" :6μm
125-150mm/5-6" :6μm
150-175mm/6-7" :7μm
175-200mm/7-8" :7μm
200-225mm/ 8-9" :8μm
225-250mm/9-10" :8μm
250-275mm/10-11" :9μm
275-300mm/11-12" :9μm
Material Tungsten carbide on measuring faces provide wear resistance.
Data output(s) with OPTO-RS232
Included in delivery Micrometer
1x battery
Measurement report
Declaration of conformity
