Brown&Sharpe

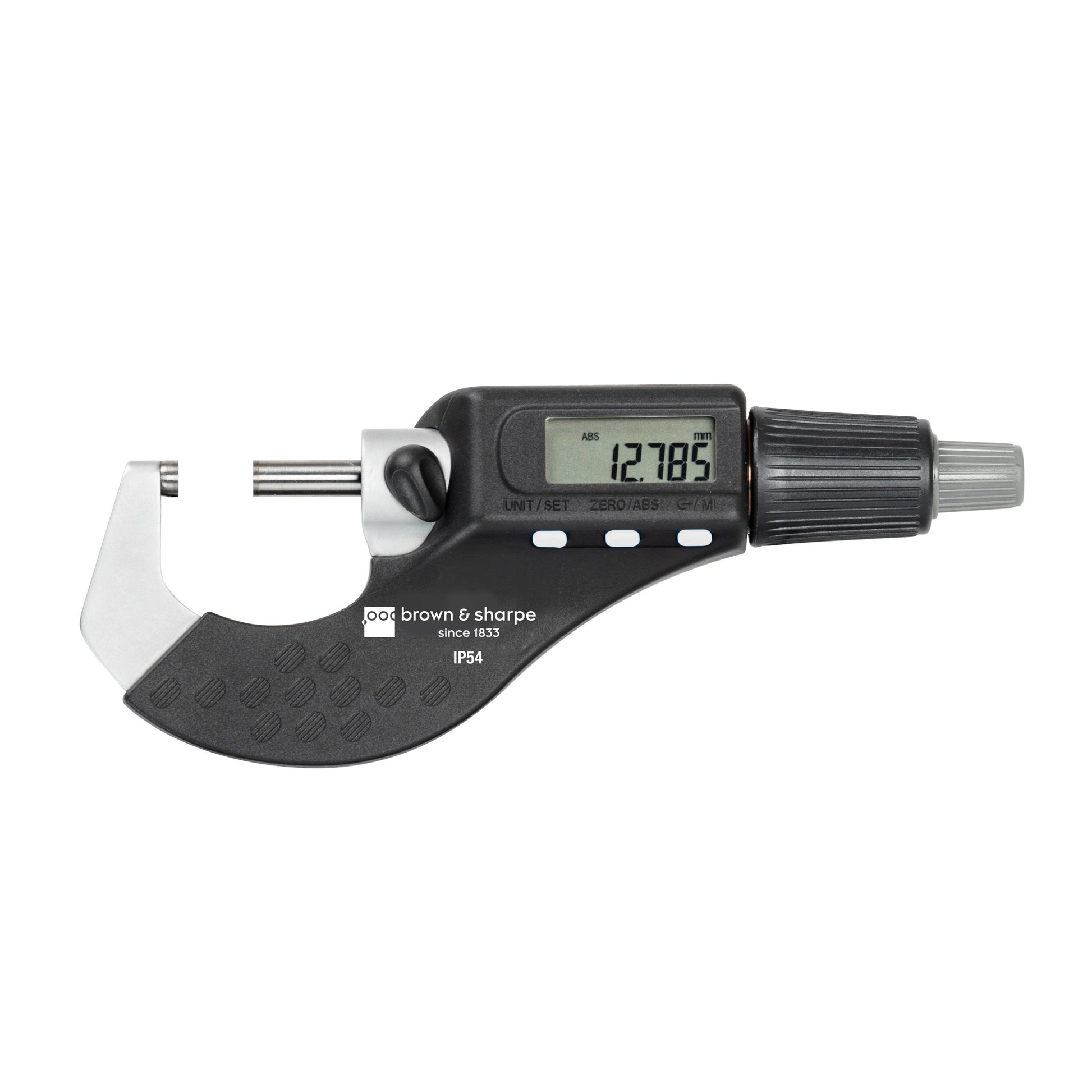

0-1.2 in. Digital Outside Micrometer With One Spherical Measuring Face IP54
0-1.2 in. Digital Outside Micrometer With One Spherical Measuring Face IP54
Regular price
$579.00
Regular price
Sale price
$579.00
Unit price
/
per
Couldn't load pickup availability
• INSTRUMENT
-With common functions
-Robust construction to ensure long life and stable results
-High degree of protection against liquids and dust
• MEASUREMENT
-Comfortable reading with large high contrast display
• AUTONOMY
-Long battery life avoiding frequent battery changes
• DATA MANAGEMENT
-odels with or without data transmission
| Measuring range(s) | 0-30mm/ 0-1.2" |
| Resolution | 0.0001mm/0.00005" |
| Zero | Floating |
| Thread pith | 0.5mm/r |
| Degree of protection | IP54 |
| Botton(s) | 3 keys |
| Display | LCD, Digital size: 7mm |
| Power supply | CR2032 button battery |
| Function(s) | Standby after 10 mins Display locking |
| Autonomy | 2,000-4,000 hours |
| Measuring force | ≤10N |
| Units | mm/in |
| Standard | DIN863 T1 |
| Max. perm. Errors | 4μm |
| Material | Tungsten carbide on measuring faces provide wear resistance. |
| Data output(s) | with OPTO-RS232 |
| Included in delivery | Micrometer 1x battery Measurement report Declaration of conformity |
